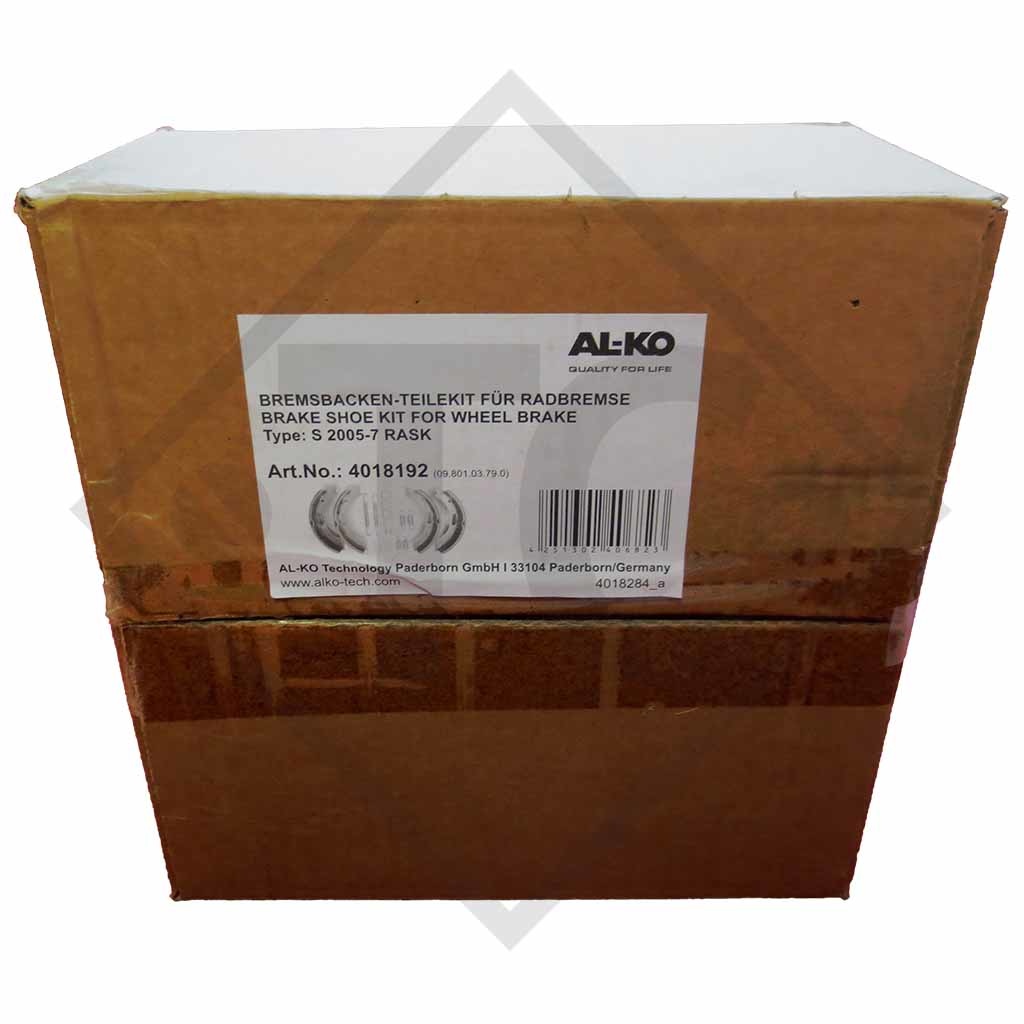

Home / Brake shoe kit for wheel brake type S 2005-7 RASK, brake size 200x50mm, for one axle
consisting of brake shoes, tension springs, clamping pin, clamping spring, bolt, for one axle (2 wheel brakes left + right). Read more...
Part no. OLD 09.801.03.79.0
Part no. NEW 4018192
| Wheel brake type (1) |
S 2005-7 RASK and S 2005-7 SK |
| Brake shoe diameter |
200mm |
| Brake shoe width | 50mm |
| Casting number brake pads |
FERODO 1770 53052 4.0 |
Scope of delivery for one axle (2 wheelbrakes) - see illustration

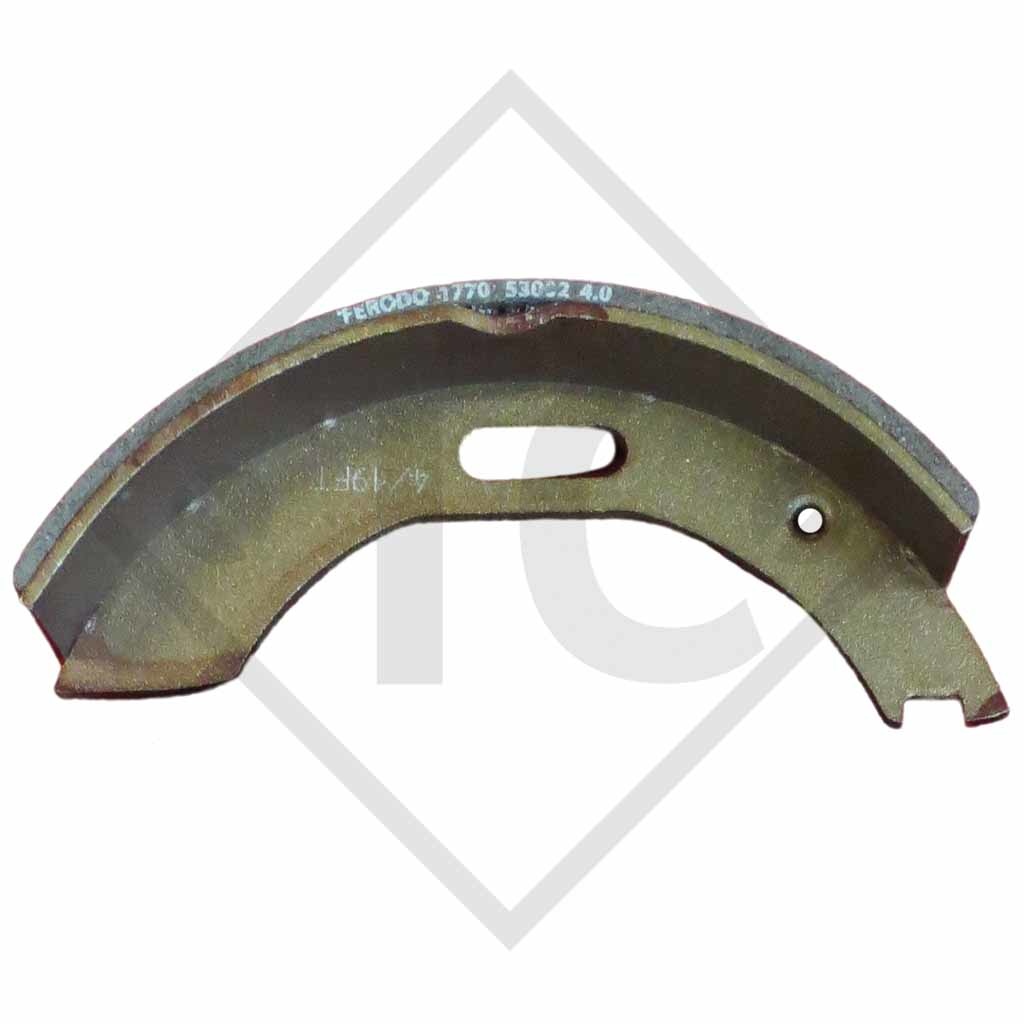

4x Brake shoes (2x secondary shoe, 2x primary jaw)
2x Tension springs
2x Clamping spring
4x Clamping pin
2x Bolt (dispensed with from 06/98)
For axle type (2)
CB 1054
CB 1055
CB 1354
CB 1355
CB 1505
CB 2/1054
CB 2/1055
CB 2/1354
CB 2/1355
DB 1054
DB 1055
DB 1354
DB 1355
DB 1505
DB 2/1355
DB 2/1505

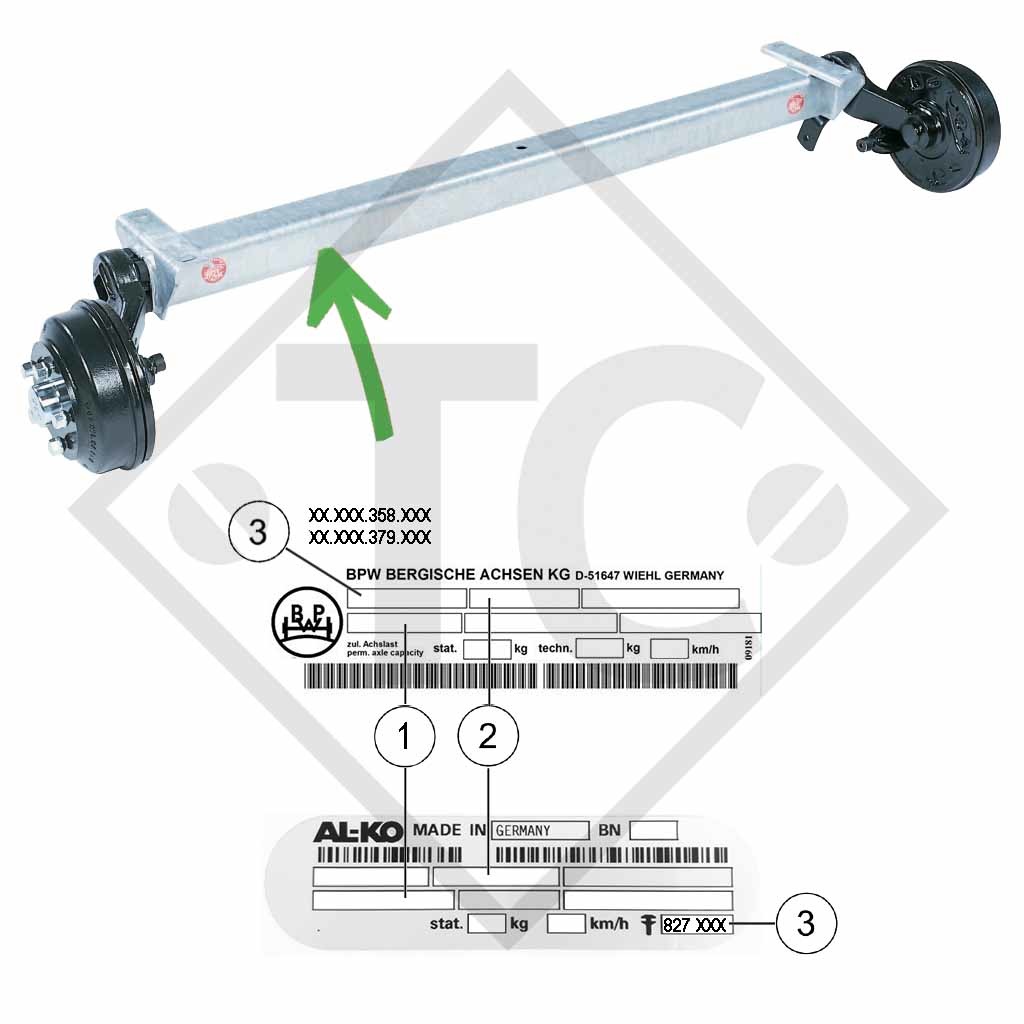

Suitable for replacement part identification number (3)
| XX.XXX.358.XXX (OLD) | XX.XXX.379.XXX (OLD) | 827030 (NEW) | 827039 (NEW) |
IMPORTANT INFORMATION: The manufacturer BPW has been sold (AL-KO).
Service manual, installation / brake shoe replacement
Installation instructions
Caution! Brake shoes are a safety element of the braking system. Following the replacement of the brake shoes, the entire braking system must be fine-tuned. The assembly and replacement of brake shoes may only be carried out by an authorized specialist workshop.
BPW Change of brake shoes
Adjusting the BPW brake system. Following the replacement of the brake shoes, the entire braking system must be fine-tuned.
Use only parts and accessories from AL-KO/BPW. Original parts vs. replica.
