Home / Brake shoe kit for wheel brake type 406x140 - 414S - WA for one side/brake
consisting of brake assembly, spring ⌀5.0 L100, twist lock. Read more...
Part no. 9RE0034
| Wheel brake type |
WA |
| Brake shoe diameter |
406mm |
| Brake shoe width | 140mm |

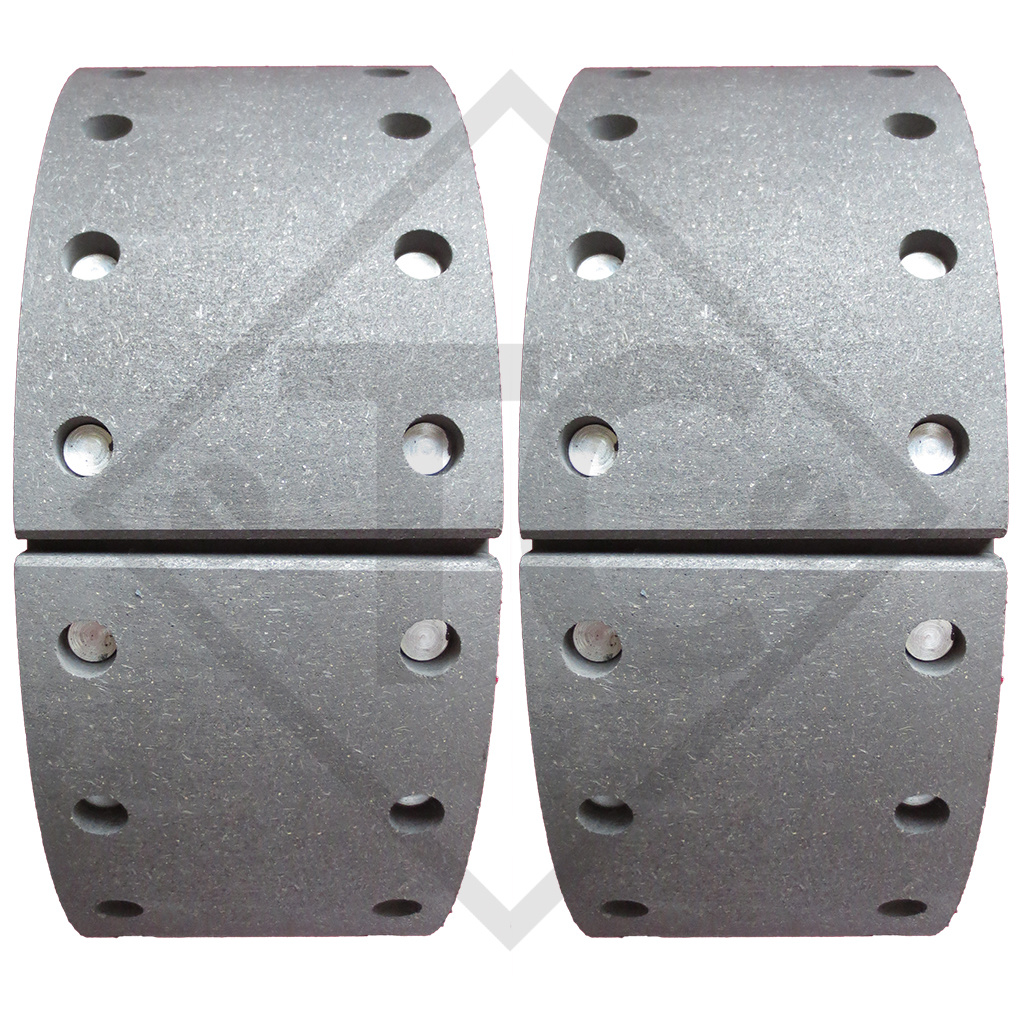

| Casting number brake pads | CA EUR1106 734WA01 |

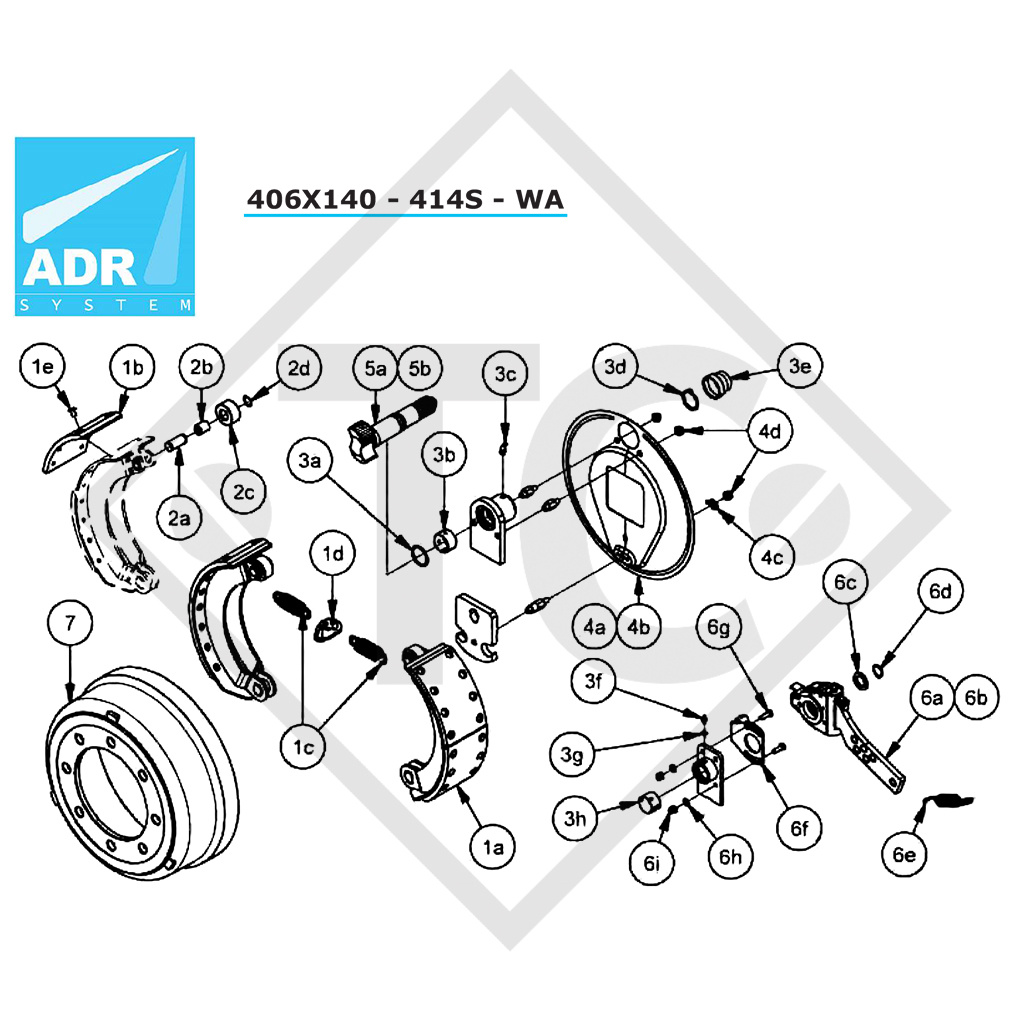

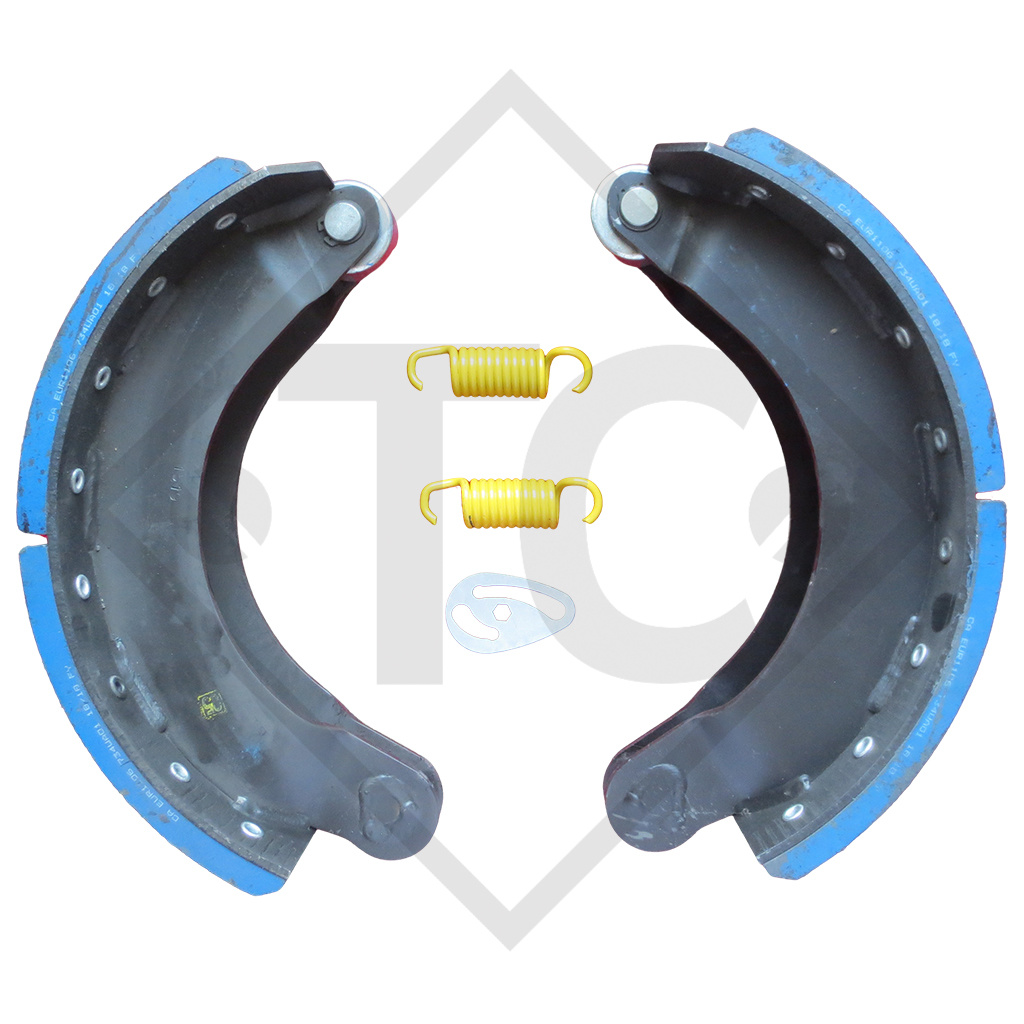

Scope of delivery for one brake - see illustration

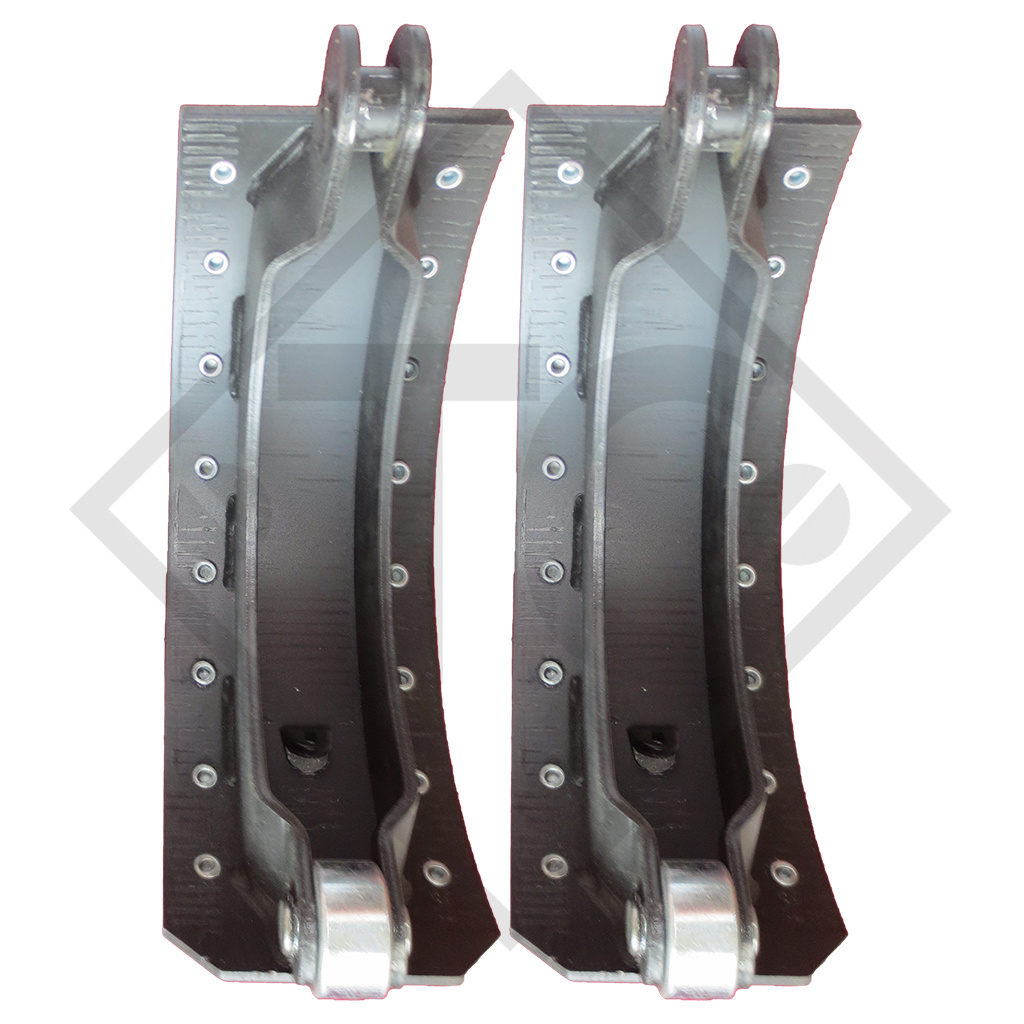

2x 1a Brake assembly

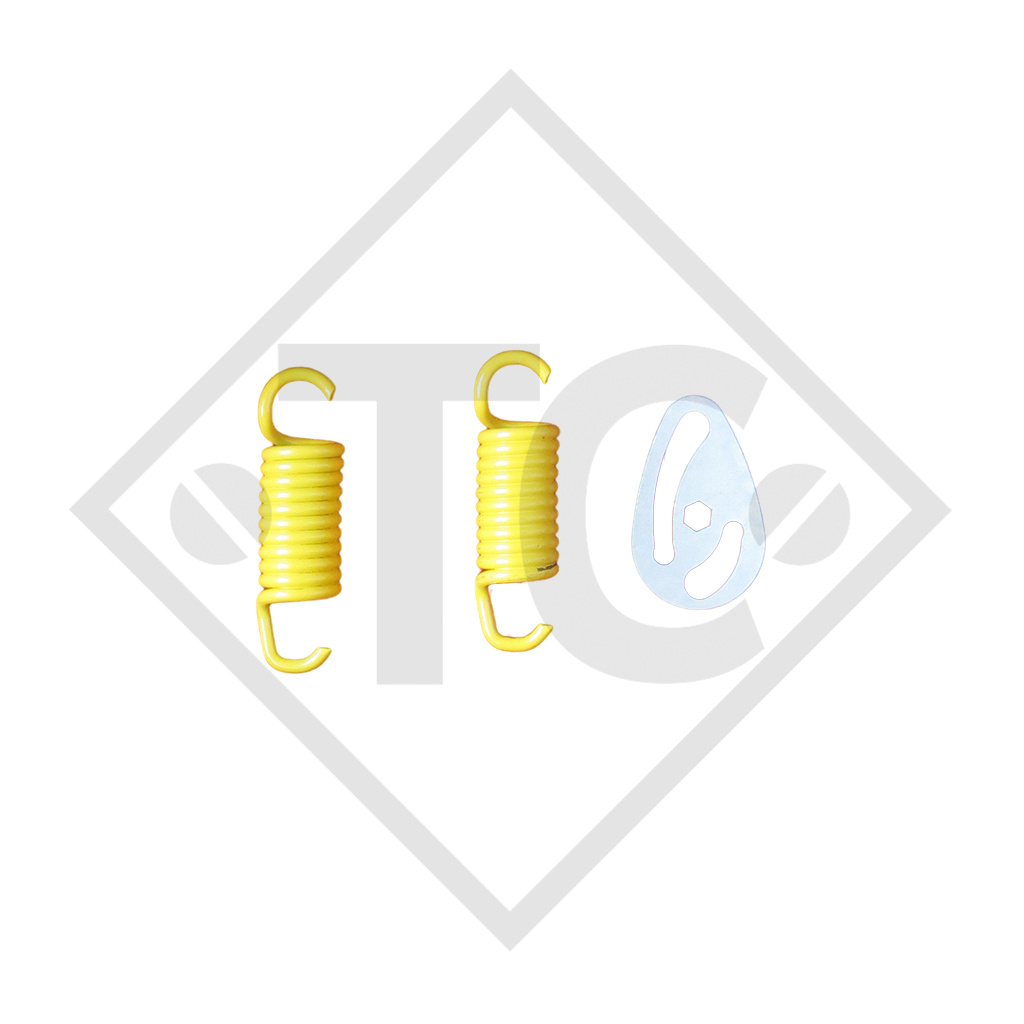

2x 1c Spring ⌀5.0 L100
1x 1d Twist lock
Suitable for replacement part identification letters
-WA
Installation instructions
Caution! Brake shoes are a safety element of the braking system.
The assembly and replacement of brake shoes may only be carried out by an authorized specialist workshop.
Here, you can find the catalogue page as a convenient PDF download.
Use only parts and accessories from ADR.
