Home / Brake shoe kit for wheel brake type 400x80 - 40G - TA for one side/brake
consisting of position 1a, 1b, 1c, 1d, 1e and 1f, scope of delivery - see illustration. Read more...
Part no. 9RE0048
| Wheel brake type |
QA |
| Brake shoe diameter |
400mm |
| Brake shoe width | 80mm |

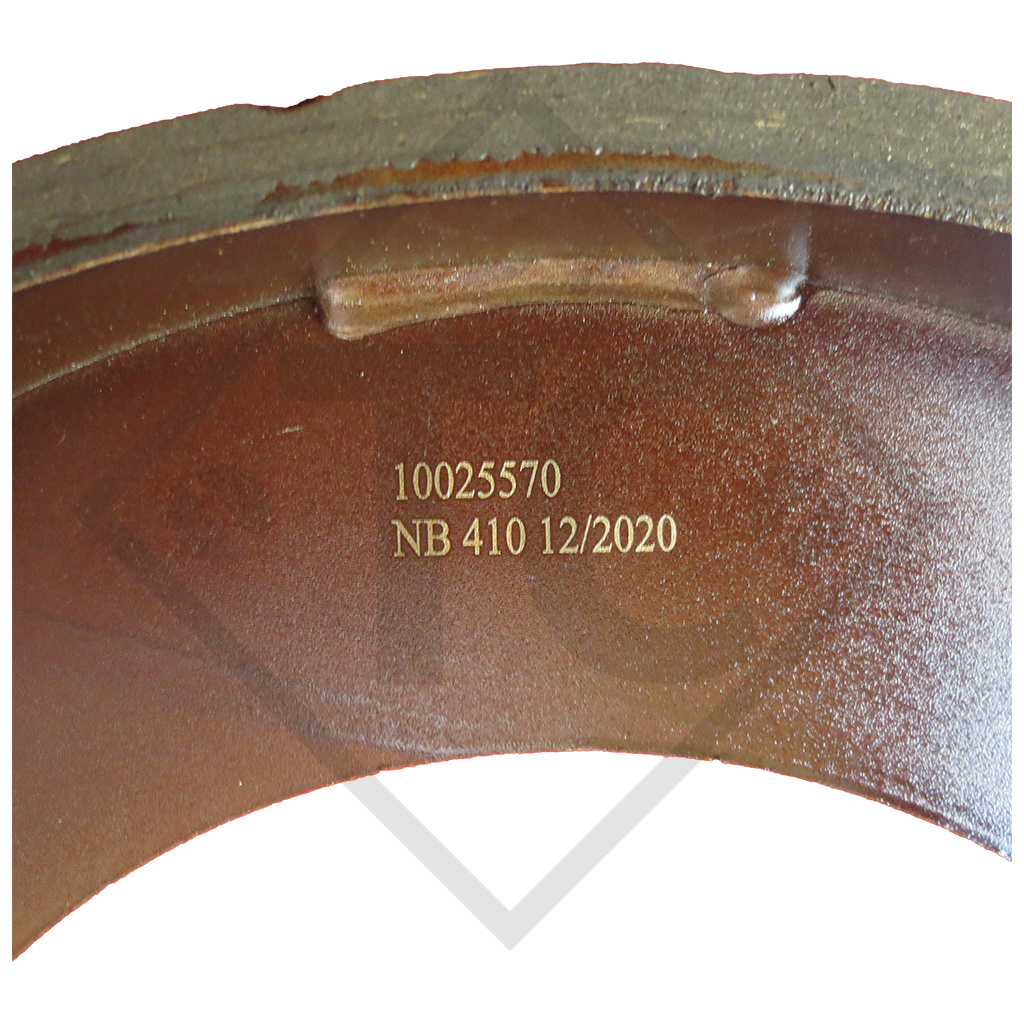

| Casting number brake shoes | 10025570 |

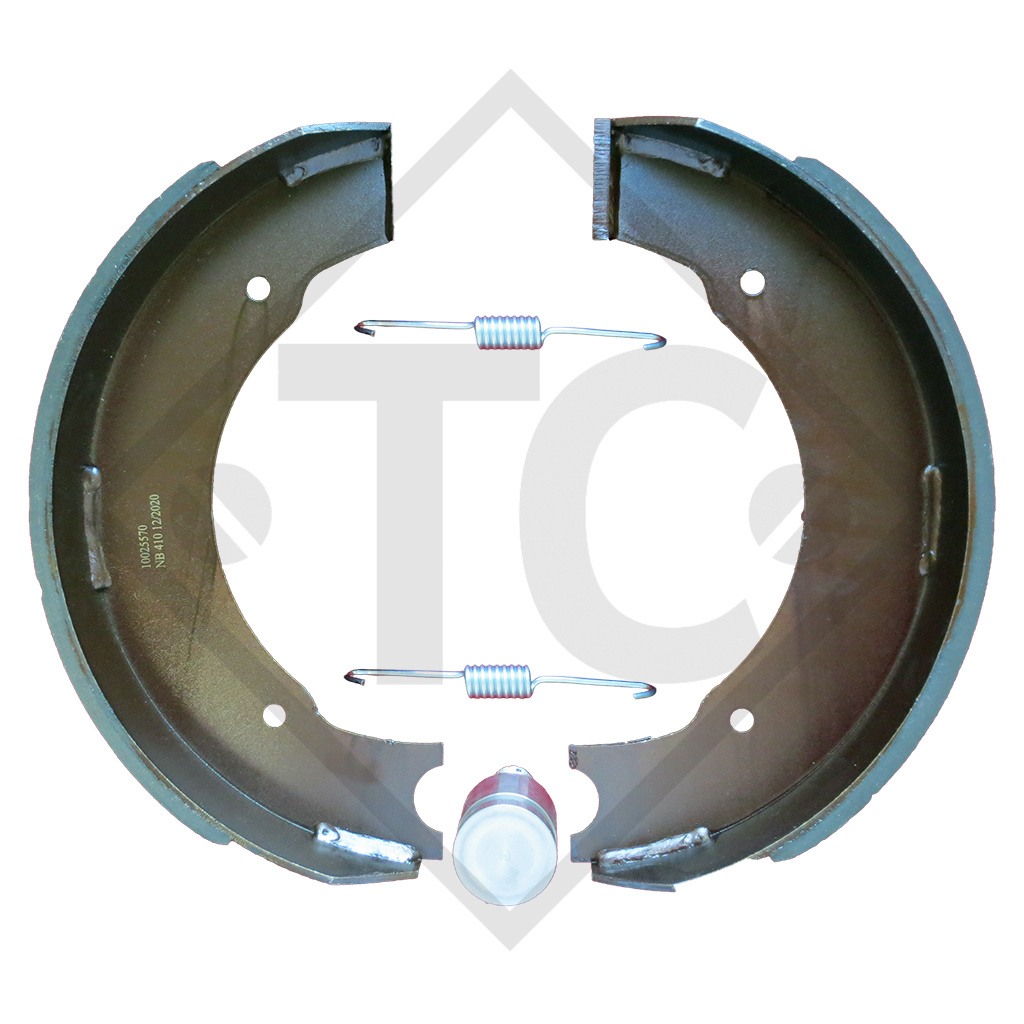

Scope of delivery for one brake - see illustration
1x 1a Brake assembly
1x 1b Camshaft bush ⌀36mm
1x 1c Retaining ring ⌀36mm
1x 1d Washer ⌀24mm
1x 1e Nut M24x1.5
Suitable for replacement part identification letters
-QA
Installation instructions
Caution! Brake shoes are a safety element of the braking system.
The assembly and replacement of brake shoes may only be carried out by an authorized specialist workshop.
Here, you can find the catalogue page as a convenient PDF download.
Use only parts and accessories from ADR.
