consisting of brake assembly, camshaft bush ⌀38mm, o-ring W2 62 ⌀37.77mm, grease nipple M8x1.25, retaining ring ⌀38mm, rubber cover, washer ⌀24mm, nut M24x1.5. Read more...

Wishlist: Add to comparison:
Price 295,30 EUR Incl. tax Excl. Shipping costs

Part no. 9RE0066

Wheel brake type
QC and QF
Brake shoe diameter
350mm
Brake shoe width 90mm

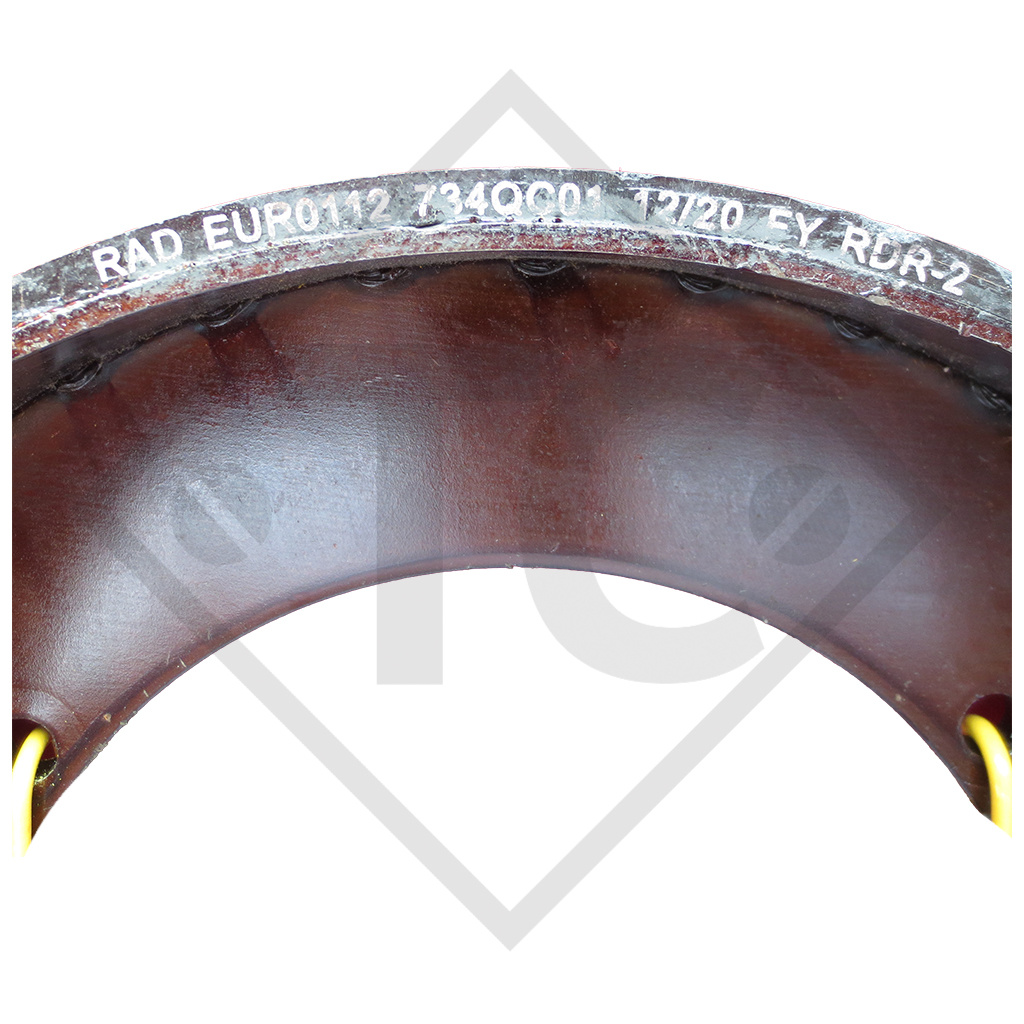

Casting number brake pads RAD EUR0112 734QC01

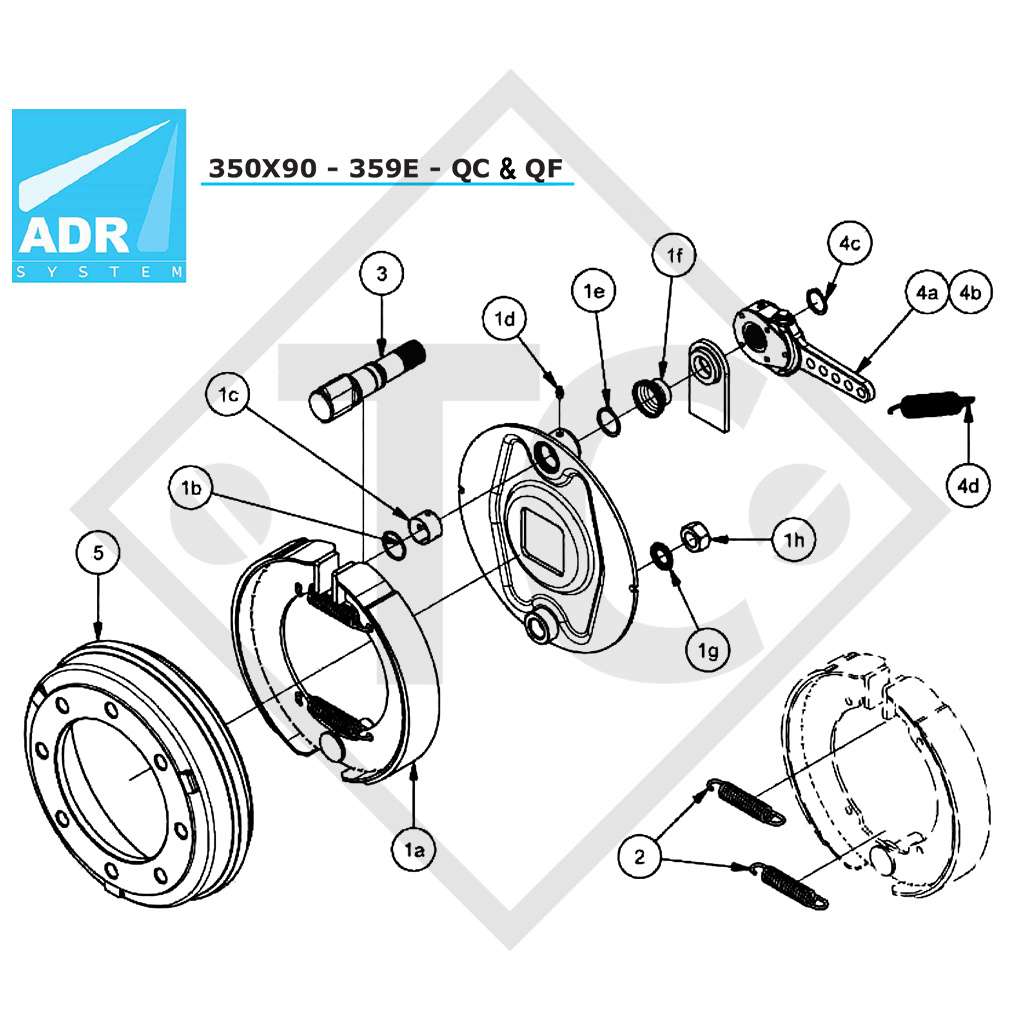

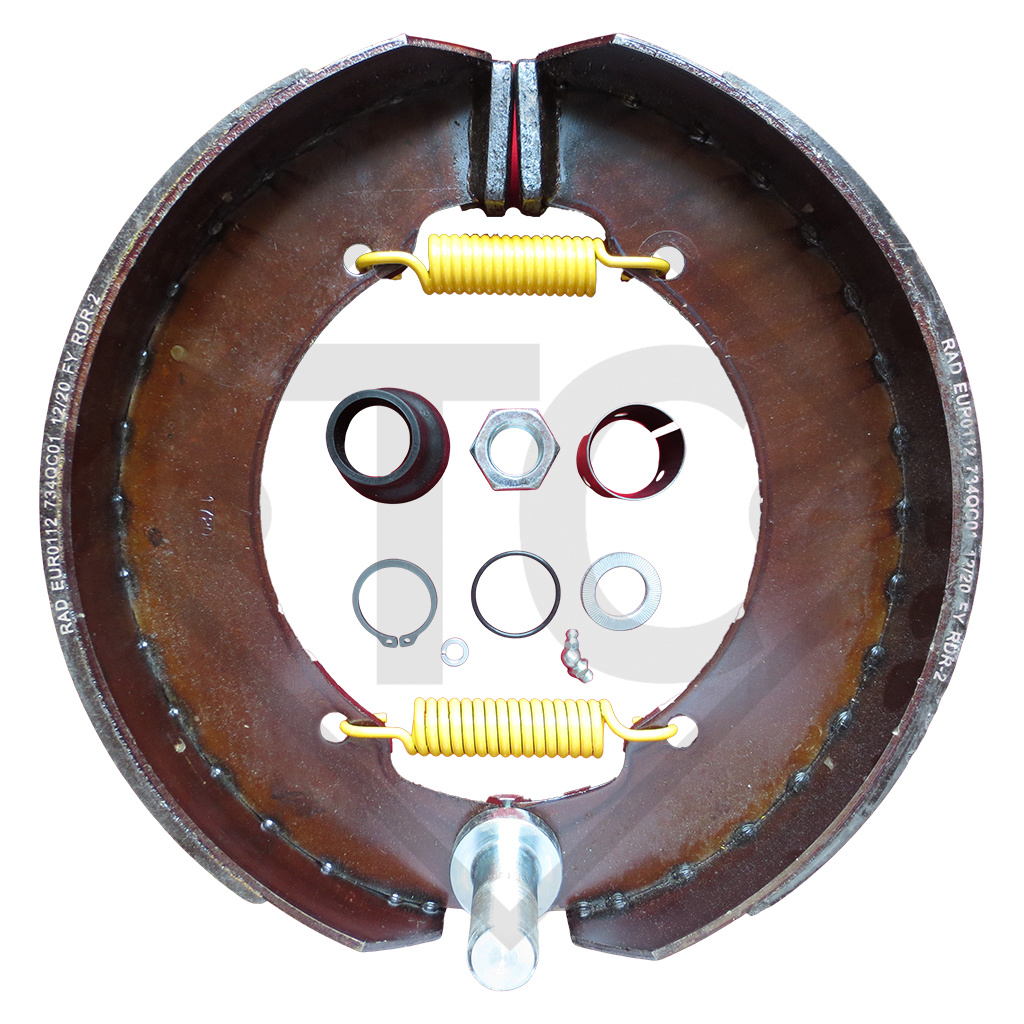

Scope of delivery for one brake - see illustration
1x 1a Brake assembly
1x 1b Camshaft bush ⌀38mm
1x 1c O-ring W2 62 ⌀37.77mm
1x 1d Grease nipple M8x1.25
1x 1e Retaining ring ⌀38mm
1x 1f Rubber cover
1x 1g Washer ⌀24mm
1x 1h Nut M24x1.5

Suitable for replacement part identification letters
QC

Maintenance Manual

Installation instructions
Caution! Brake shoes are a safety element of the braking system.
The assembly and replacement of brake shoes may only be carried out by an authorized specialist workshop.

Here, you can find the catalogue page as a convenient PDF download.
Use only parts and accessories from ADR.

... ...
