Home / Brake shoe kit for wheel brake type 2361 with deflection 90°, for lowering axles, brake size 230x60mm, for one axle
consisting of brake shoes, pressure springs, tension springs, cover plates, casting number brake shoes 384509 or 1808747, for one axle (2 wheel brakes left + right). Read more...
Part no. 1224393

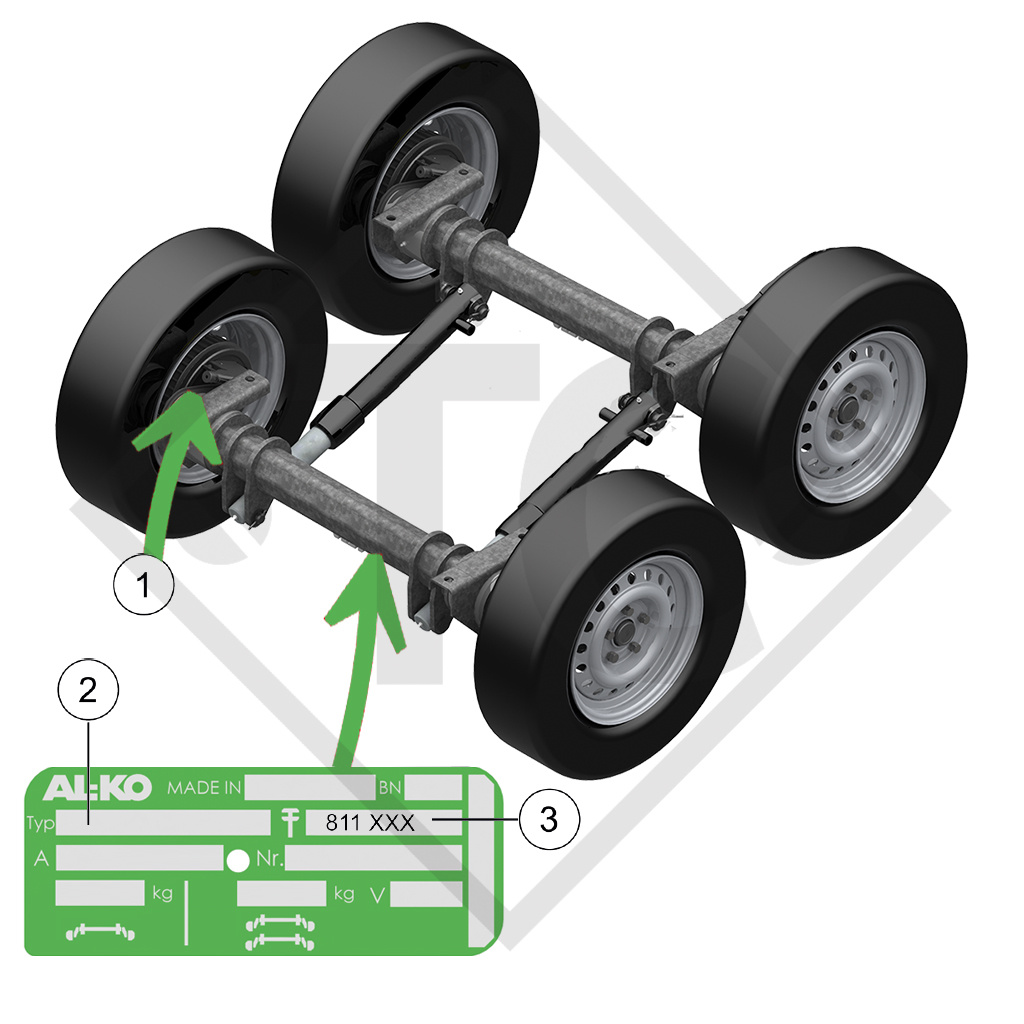

| Wheel brake type (1) |
2361 with deflection 90° |
| Brake shoe diameter |
230mm |
| Brake shoe width | 60mm |

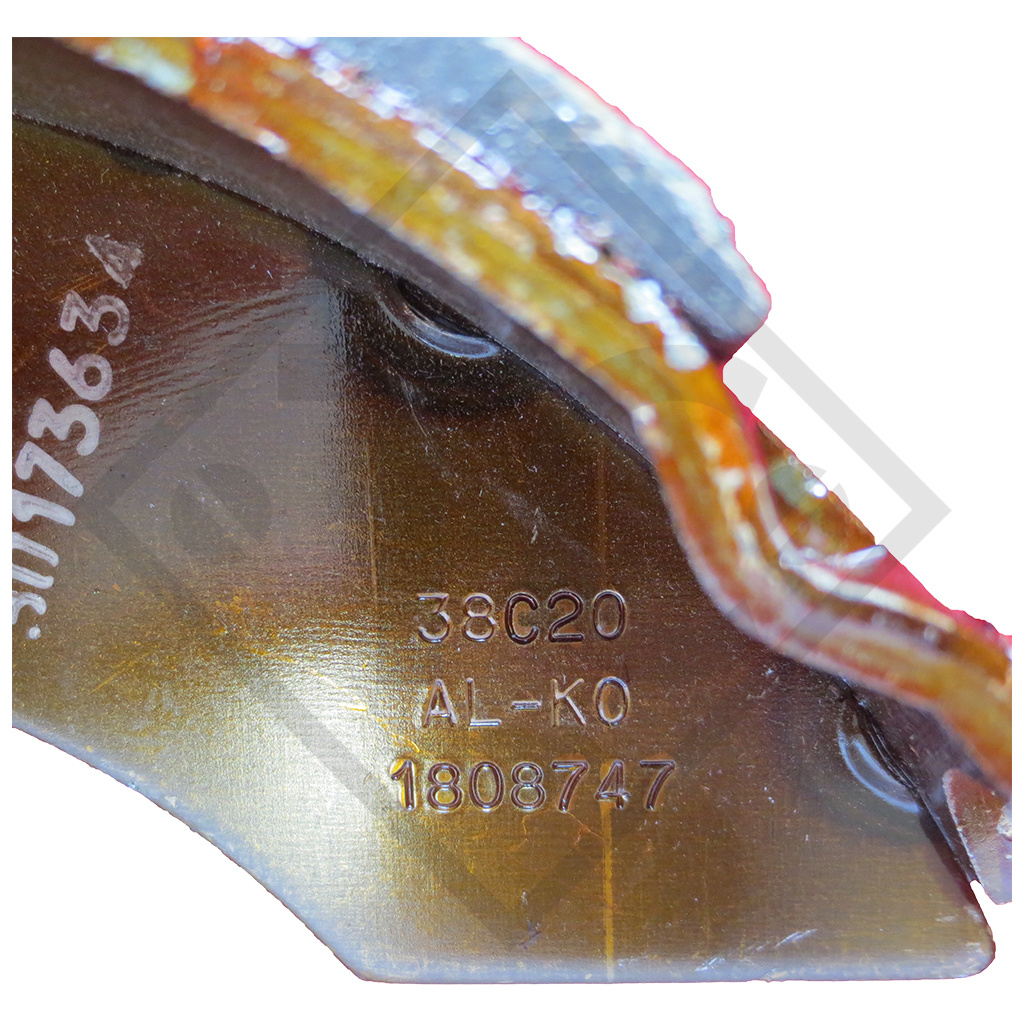

| Casting number brake shoes | 384509 (OLD) or 1808747 (NEW) |

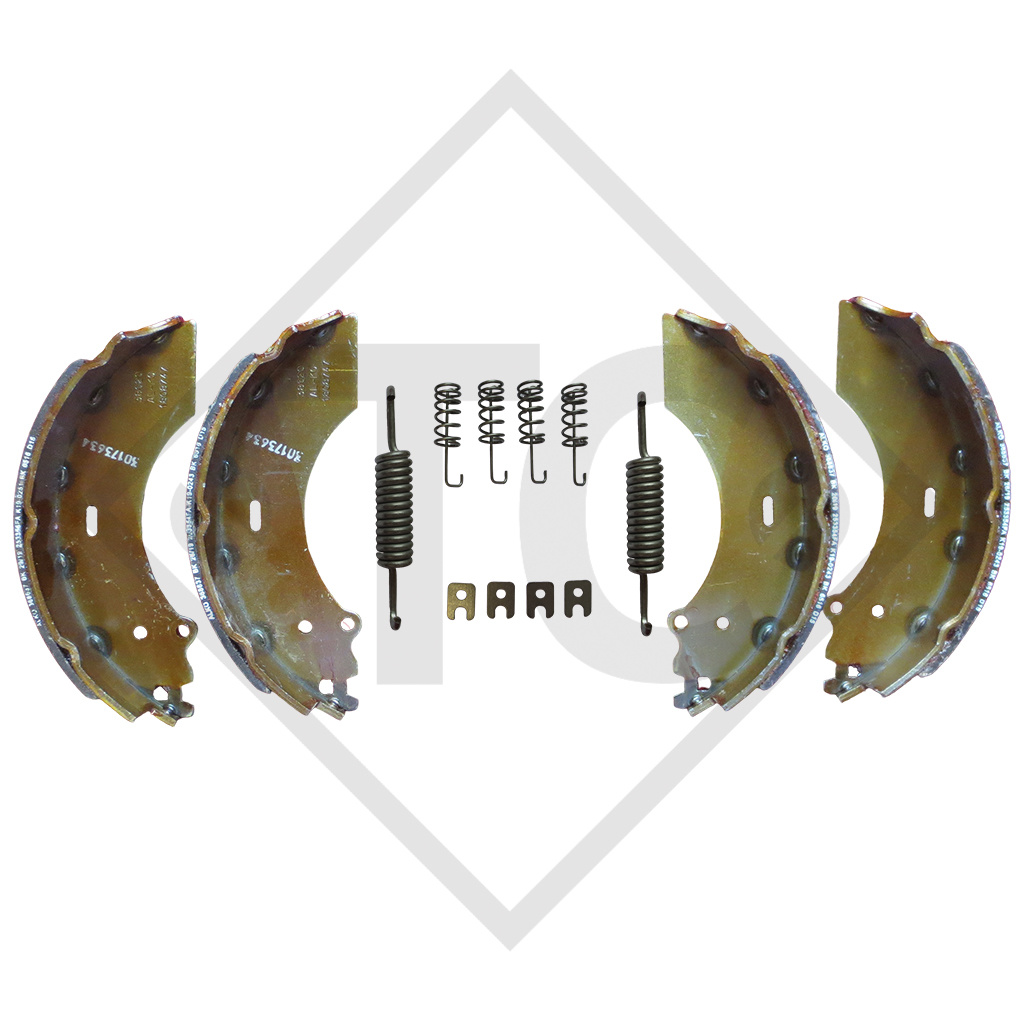

Scope of delivery for one axle (2 wheelbrakes) - see illustration
4x Brake shoes (2x secondary shoe, 2x primary jaw)
4x Cover plates
4x Pressure spring (brake shoe holding spring)
2x Tension spring
For axle type (2)
ASB 1800
BRA 1800-5
BRA 1800-9
Suitable for replacement part identification number (3)
| 811522 |
Service manual, installation / brake shoe replacement
Wheelbrake service guide
Installation instructions
Caution! Brake shoes are a safety element of the braking system. Following the replacement of the brake shoes, the entire braking system must be fine-tuned. The assembly and replacement of brake shoes may only be carried out by an authorized specialist workshop.
Use only parts and accessories from AL-KO. Original parts vs. replica.
