consisting of brake shoes, pressure springs, tension springs, cover plates, spread hinge lock, (scope of delivery - see illustration), casting number brake shoes 384509 or 1808747, for one axle (2 wheel brakes left + right). Read more...

Wishlist: Add to comparison:
Price 377,00 EUR Incl. tax Excl. Shipping costs

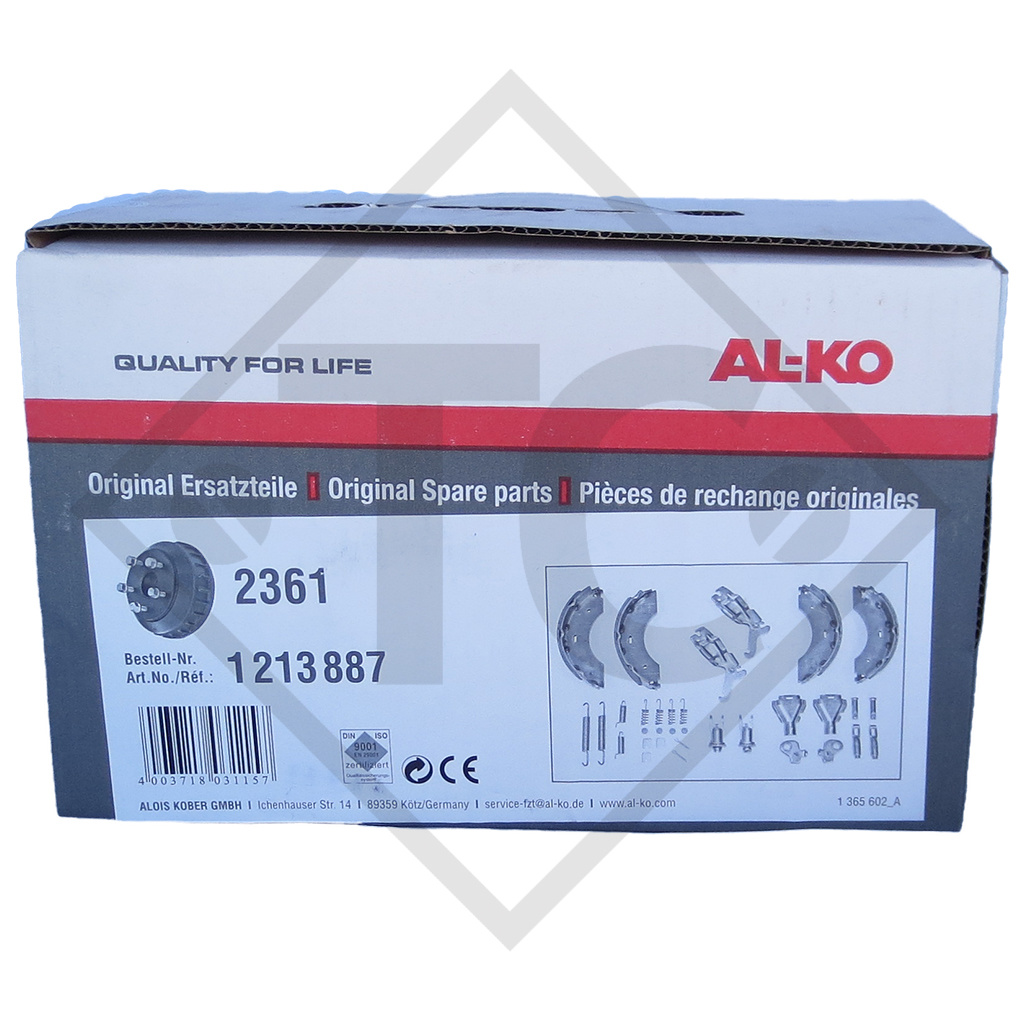

Part no. 1213887

Wheel brake type (1)
2361
Brake shoe diameter
230mm
Brake shoe width 60mm

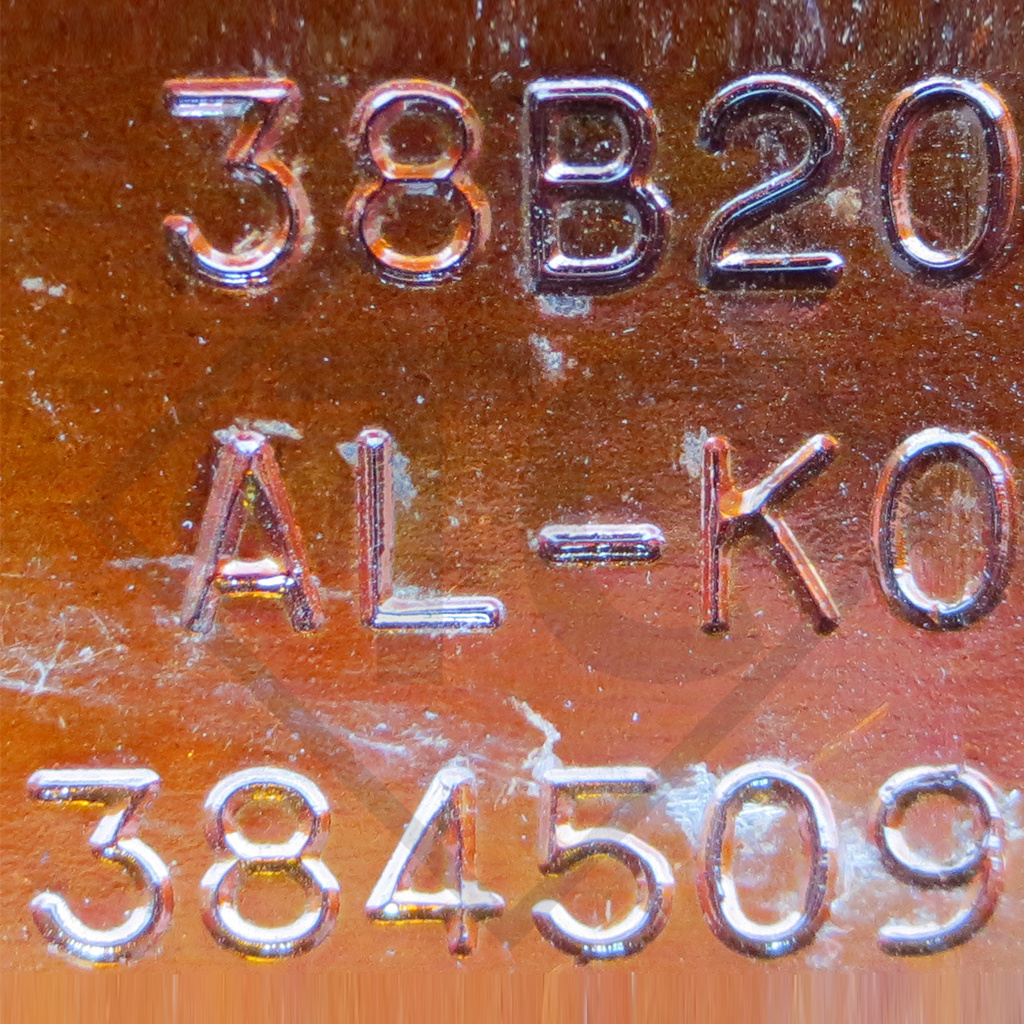

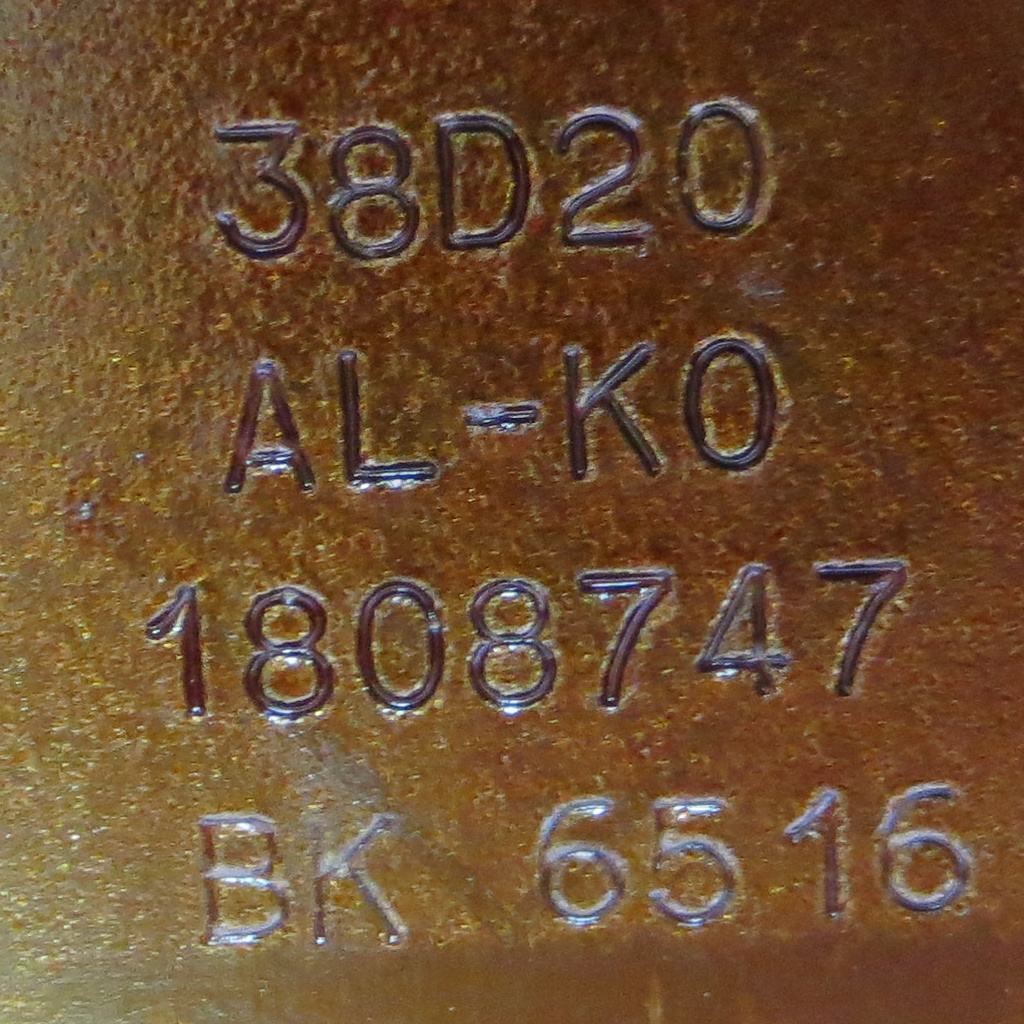

Casting number brake shoes 384509 (OLD) or 1808747 (NEW)

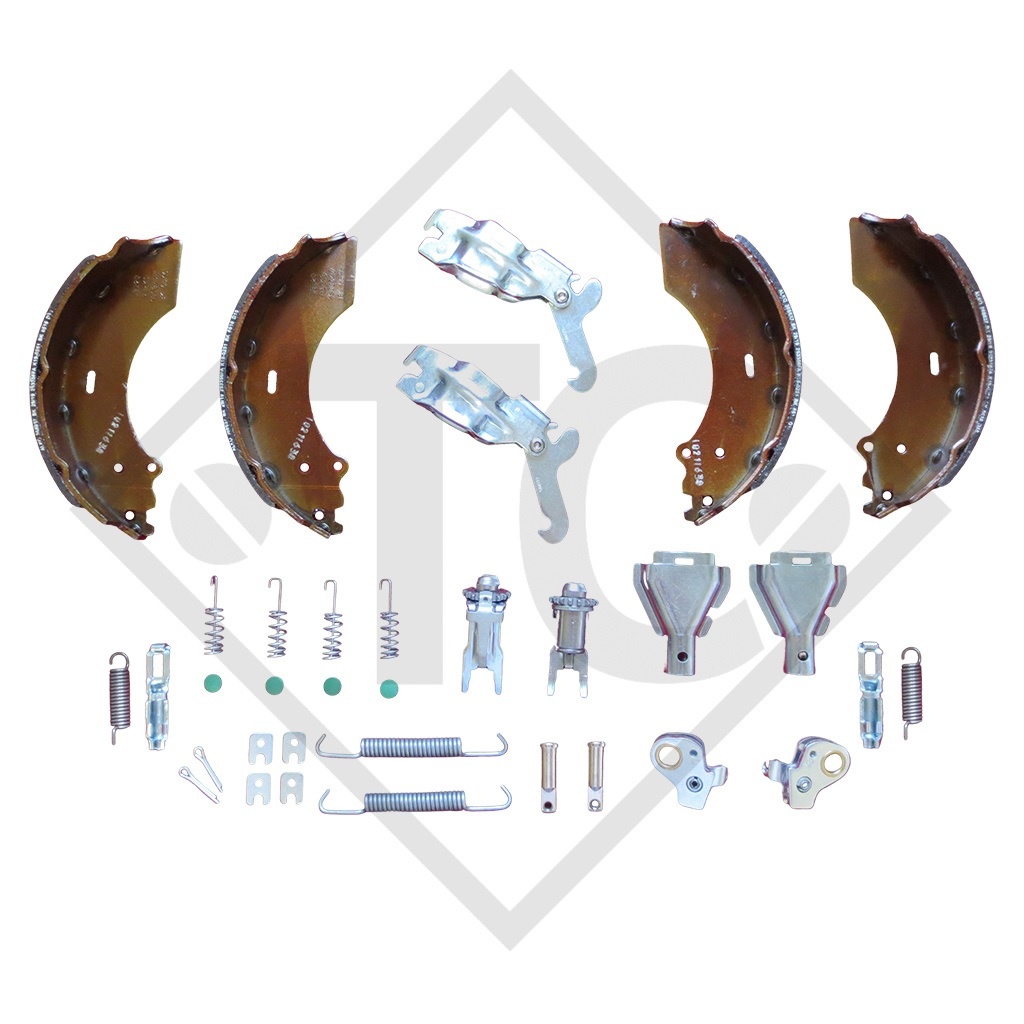

Scope of delivery for one axle (2 wheelbrakes) - see illustration

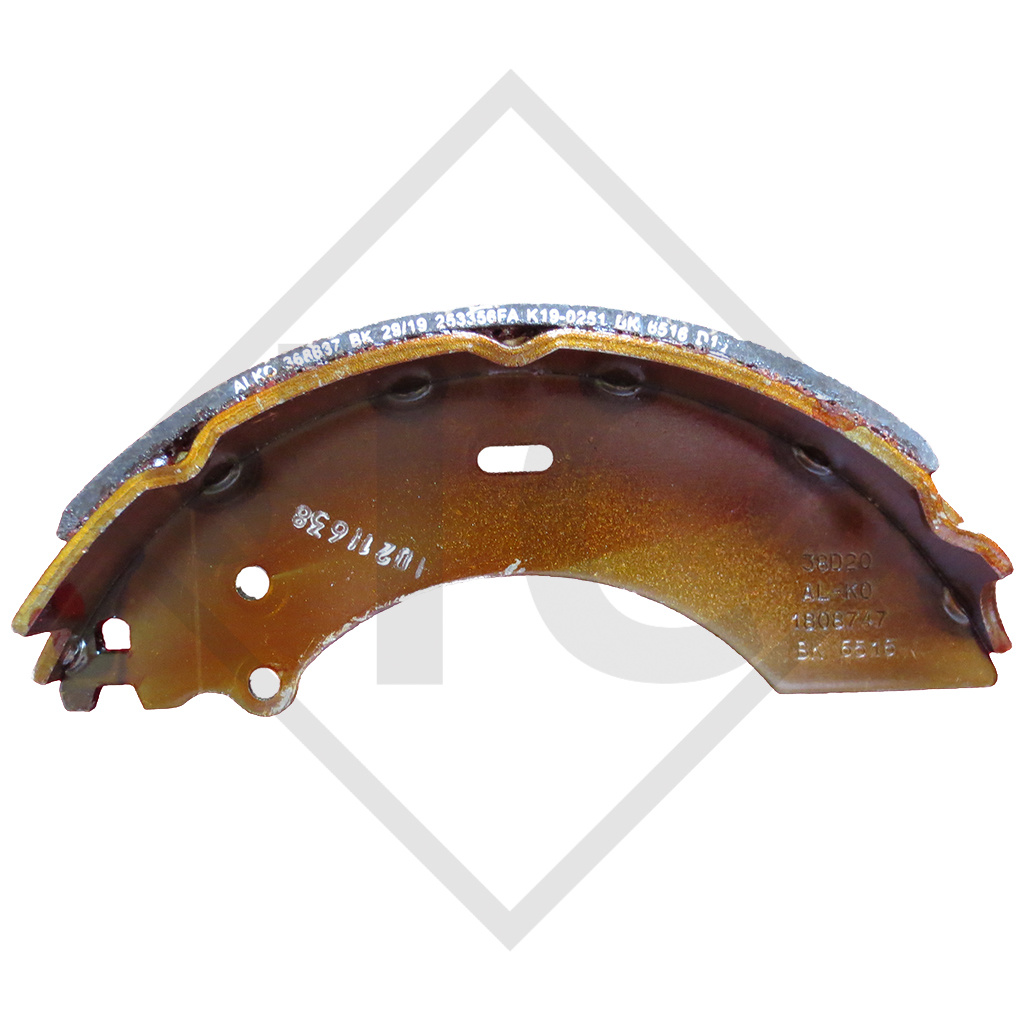

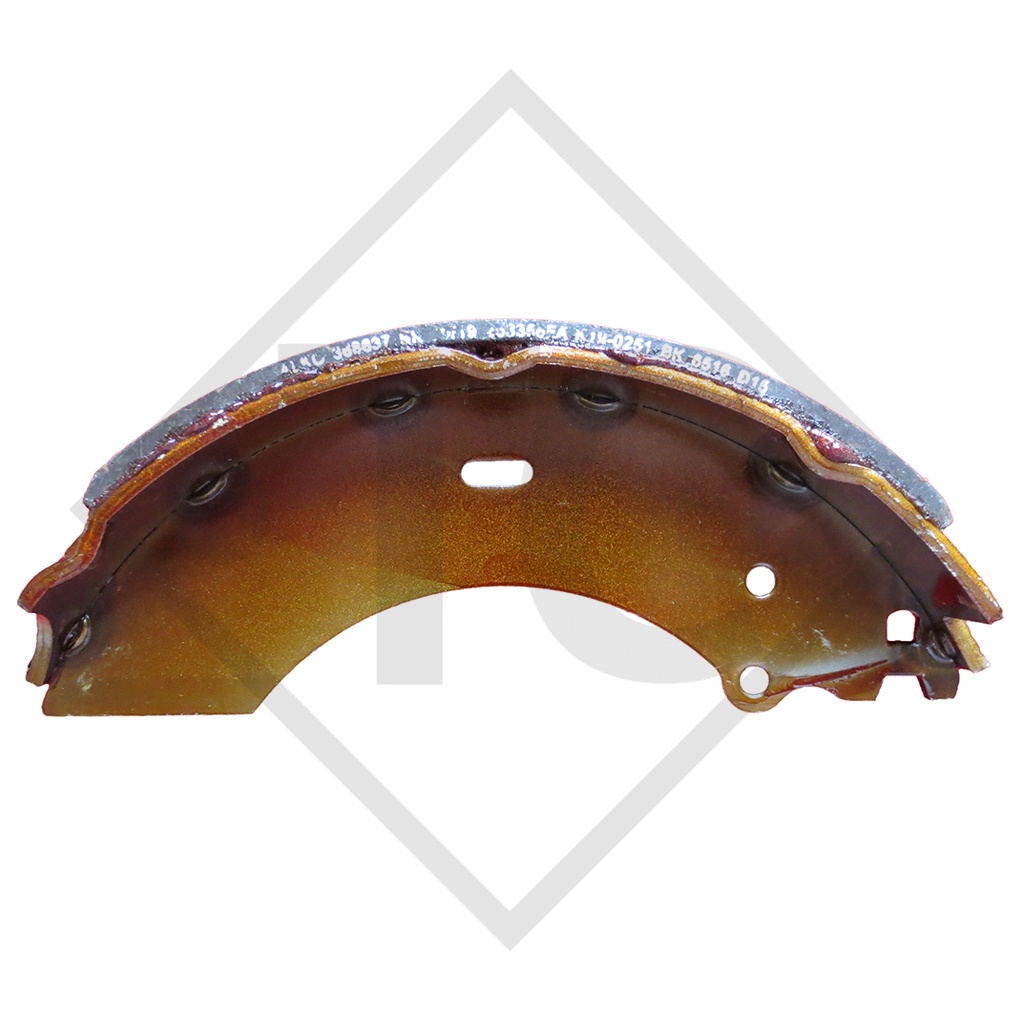

4x Brake shoes (2x secondary shoe, 2x primary jaw)
4x Cover plates
4x Stopper
4x Pressure spring (brake shoe holding spring)
2x Tension spring long
2x Tension spring short
2x Spread hinge lock (expanding joint lock)
2x Adjusting screw, adjusting nut and compression binder (tension clip)
2x Flat spring
2x Cup
2x Splint
2x Connection eye (hock-in eye)
2x Bearing bolt
1x Auto-reverse lever left (brake lever left)
1x Auto-reverse lever right (brake lever right)

For axle type (2)
ASB 1800
B 1600-1
B 1800-9
B 2000-0
BL 1800
BL 2000
BS 1800
CB 1800

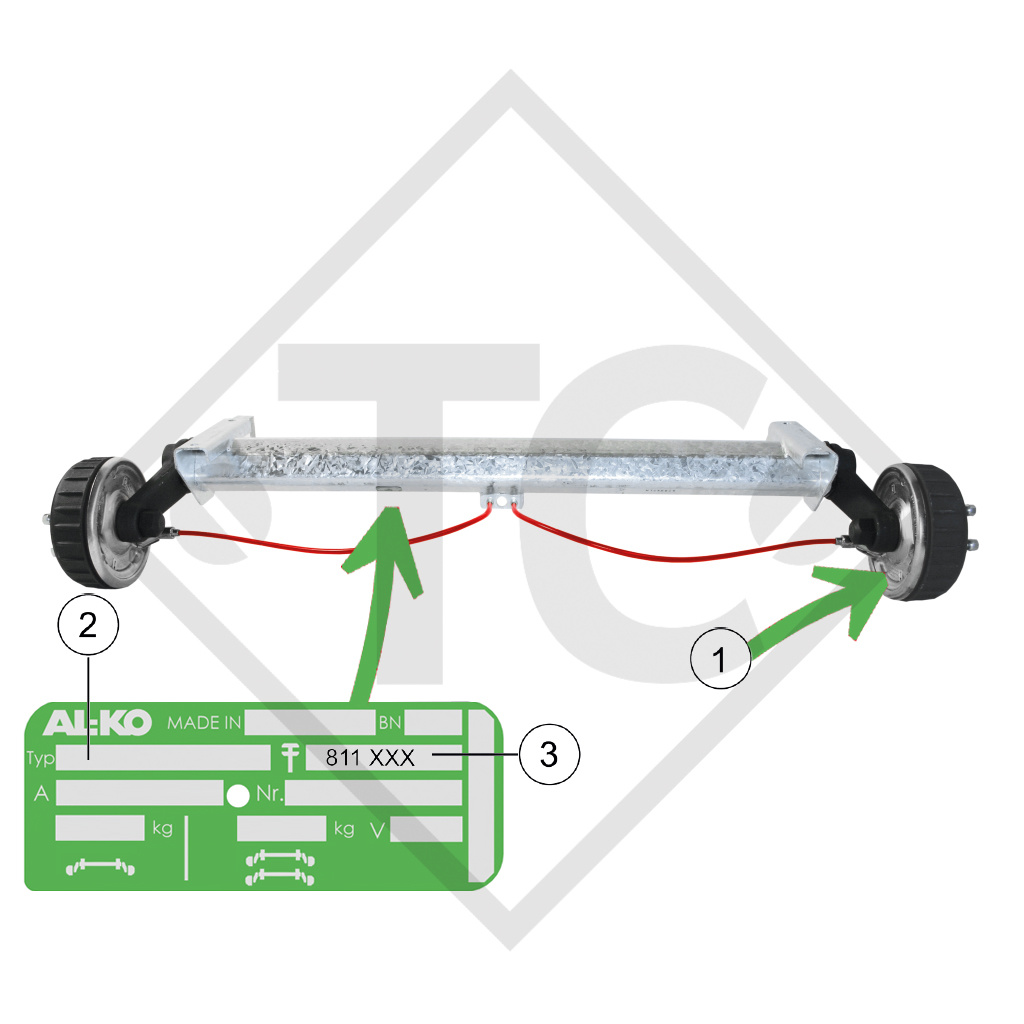

Suitable for replacement part identification number (3)

811003 811308 811467 811498 811603 811732
811136 811337 811469 811530 811626 811786
811167 811338 811478 811576 811652 811835
811168 811339 811486 811591 811661 811838
811169 811357 811489 811592 811719 811865
811239 811409 811493 811600 811723 811874



Service manual, installation / brake shoe replacement
Wheelbrake service guide

Installation instructions
Caution! Brake shoes are a safety element of the braking system. Following the replacement of the brake shoes, the entire braking system must be fine-tuned. The assembly and replacement of brake shoes may only be carried out by an authorized specialist workshop.

Use only parts and accessories from AL-KO. Original parts vs. replica.

... ...
