Home / Brake shoe kit for wheel brake type 2350, brake size 230x50mm, for one axle
consisting of brake shoes, pressure springs, tension springs, cover plates, casting number brake shoes 21890703, for one axle (2 wheel brakes left + right). Read more...

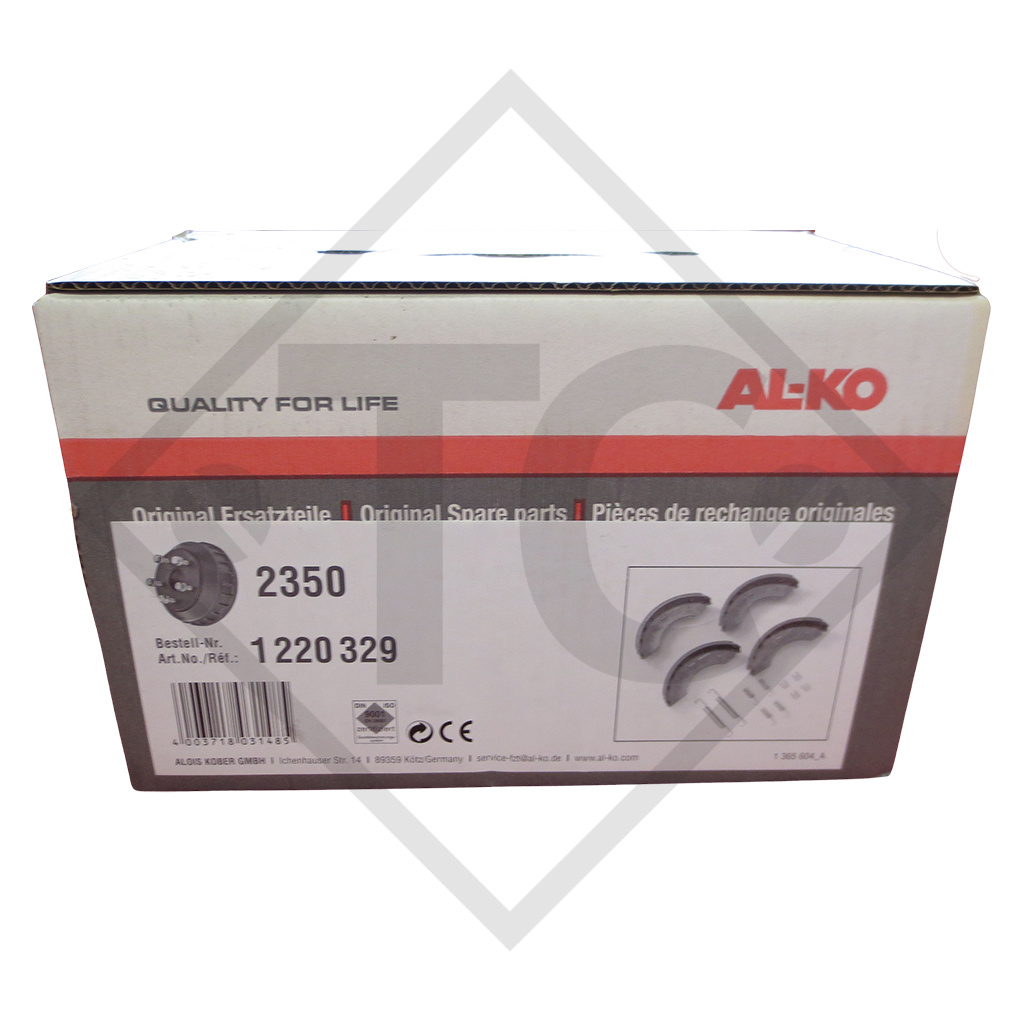

Part no. 1220329
| Wheel brake type (1) |
2350 |
| Brake shoe diameter |
230mm |
| Brake shoe width | 50mm |

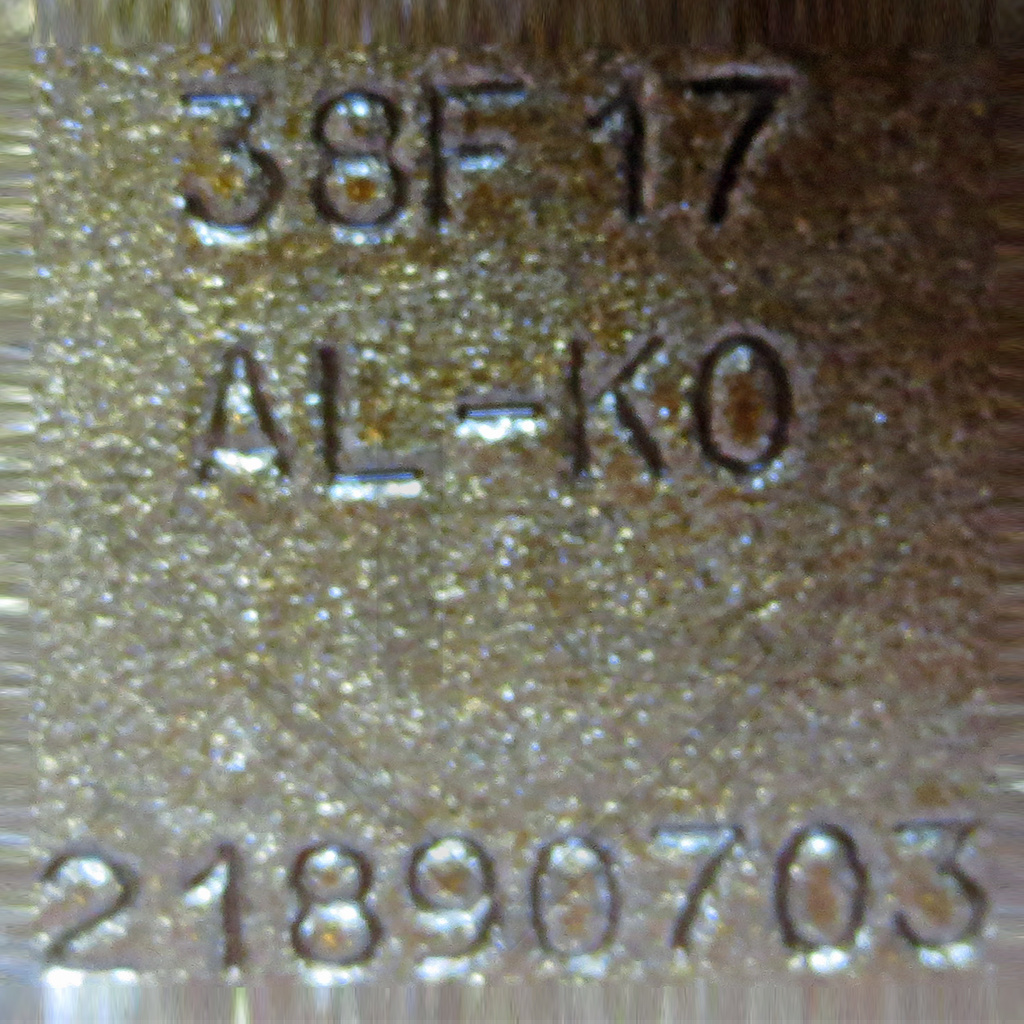

| Casting number brake shoes | 21890703 |

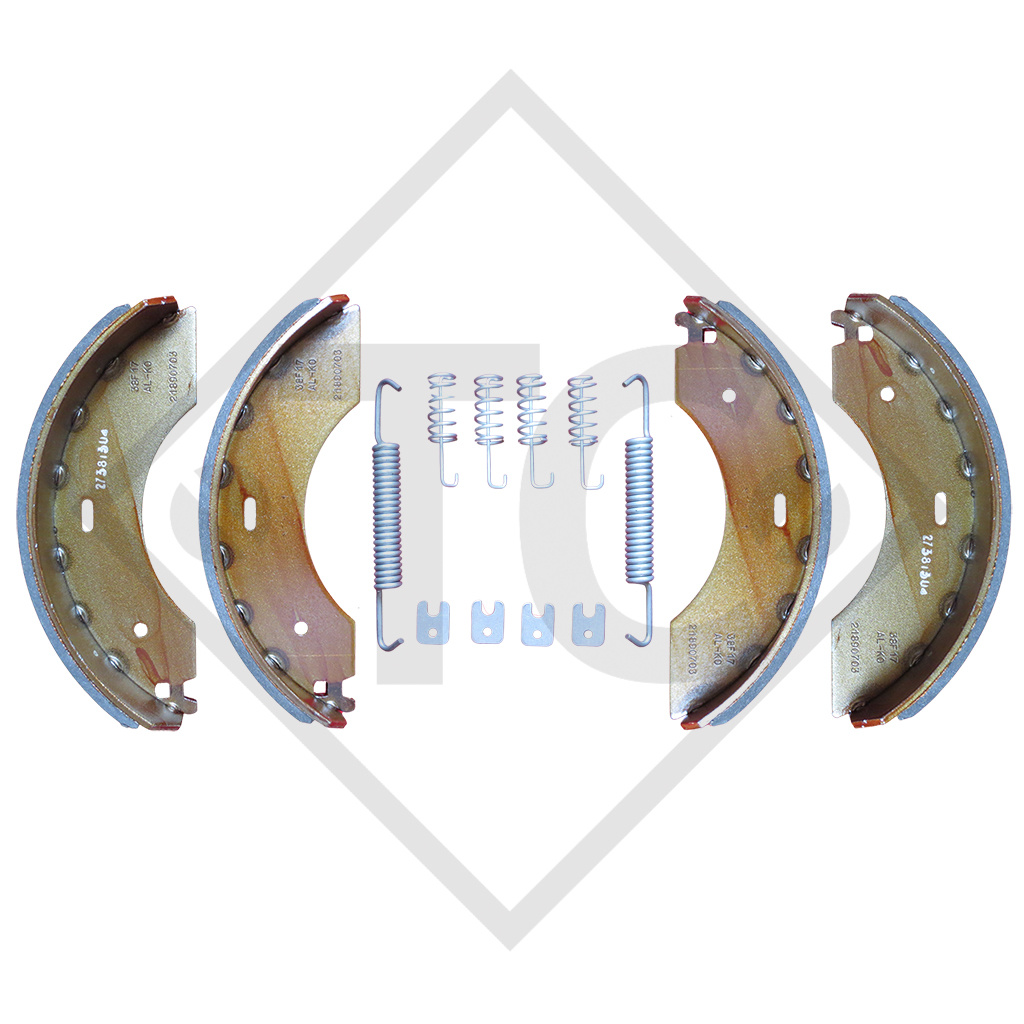

Scope of delivery for one axle (2 wheelbrakes) - see illustration

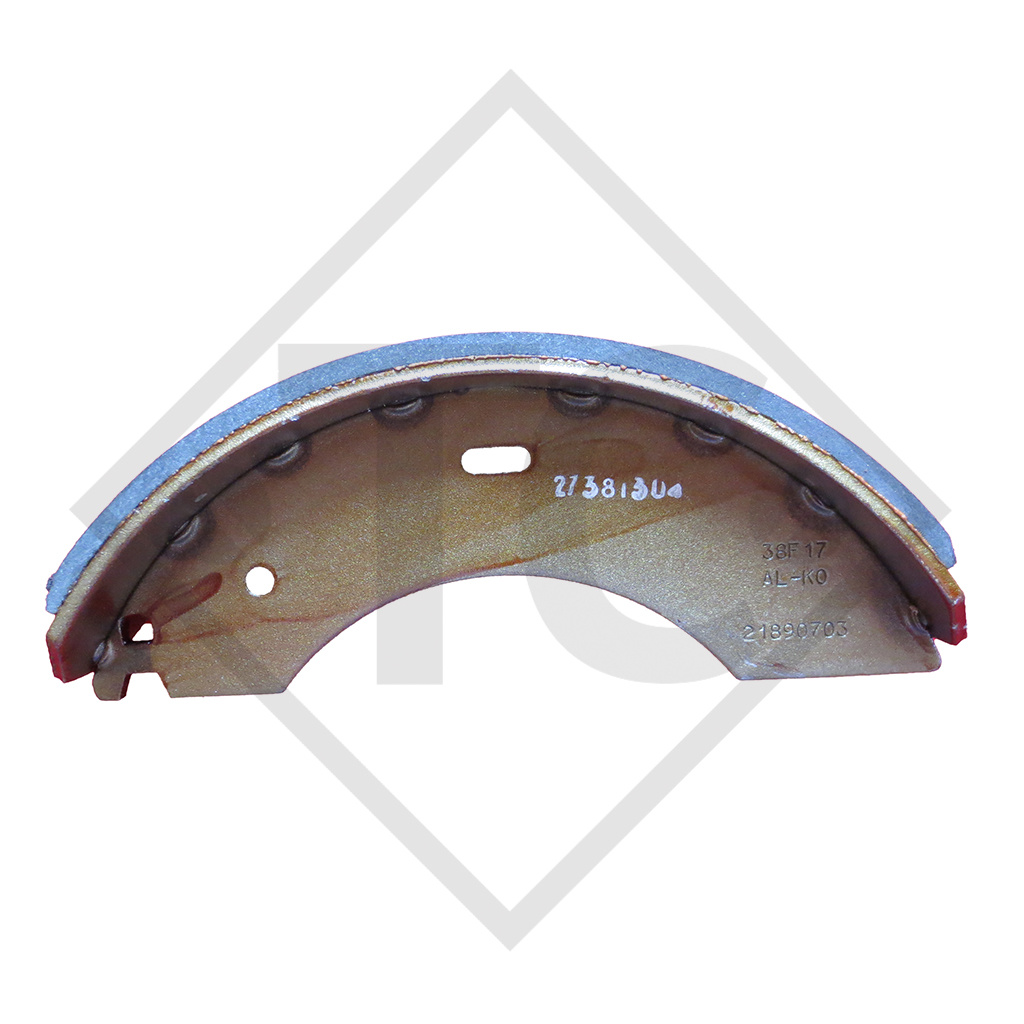

4x Brake shoes (2x secondary shoe, 2x primary jaw)
4x Cover plates
4x Pressure spring (brake shoe holding spring)
2x Tension spring
Service manual, installation / brake shoe replacement
Wheelbrake service guide
Installation instructions
Caution! Brake shoes are a safety element of the braking system. Following the replacement of the brake shoes, the entire braking system must be fine-tuned. The assembly and replacement of brake shoes may only be carried out by an authorized specialist workshop.
Use only parts and accessories from AL-KO. Original parts vs. replica.
