Home / CHASSIS PARTS / CHASSIS PARTS BPW / AXLES / BRAKED AXLE 1500KG SWING, AXLE TYPE CB 1505 / Bowden cable 561410 for overrun device with thread and eyelet

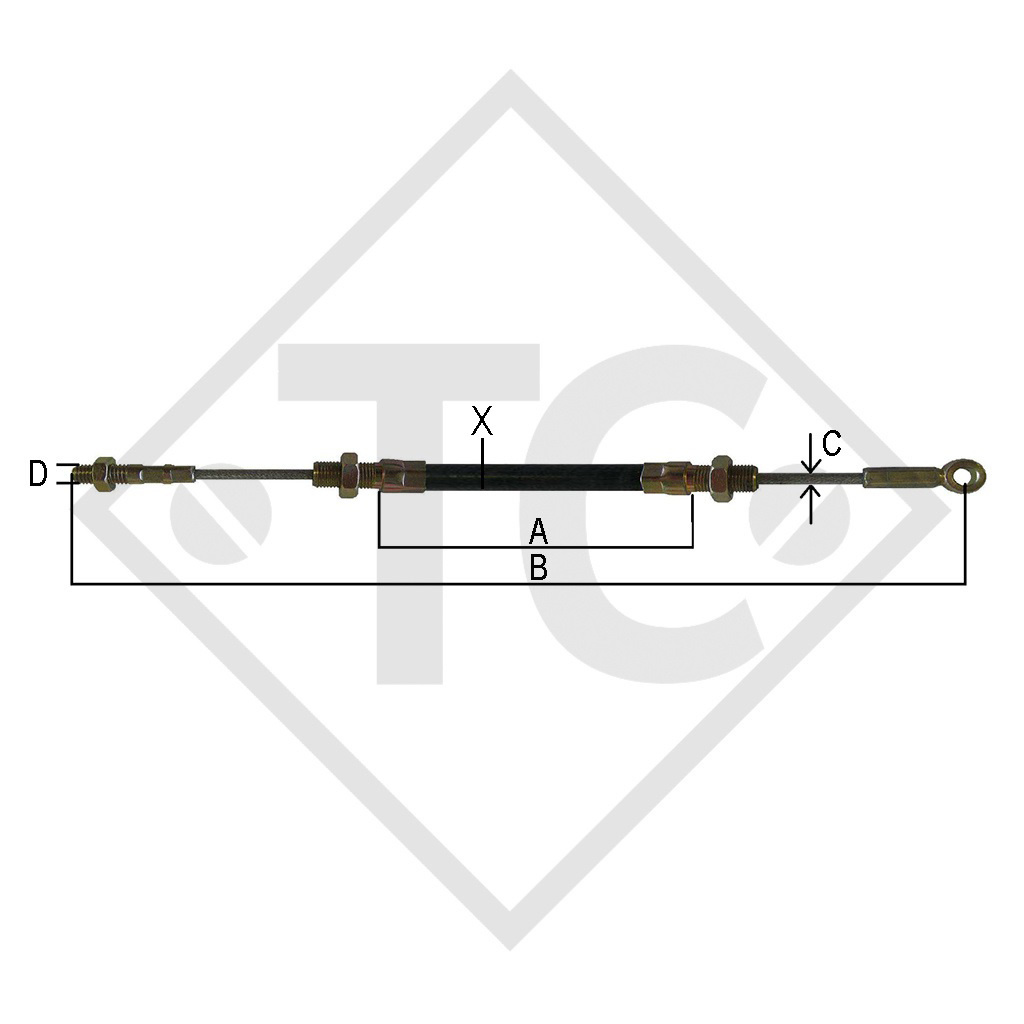

sheath length (A) 750mm, cable length (B) 990mm, cable thickness (C) 5mm, thread (D) M10, suitable for types FA 0.9 and FA 1.4. Read more...
| X = Part no. |
561410 |
| A = sheath length |
750mm |
| B = cable length | 990mm |
| C = cable thickness | 5mm |
| D = thread | M10 |
| suitable for types | FA 0.9, FA 1.4 |
SCOPE OF DELIVERY
Bowden cable for overrun device
