Home / CHASSIS PARTS / CHASSIS PARTS AL-KO / AXLES / BRAKED AXLES & ACCESSORIES / BRAKED AXLES / BRAKED AXLE 1350KG BASIC, AXLE TYPE B 1200-6 / Bowden cable 381594 for overrun device with thread and eyelet
sheath length (A) 870mm, cable length (B) 1100mm, cable thickness (C) 6mm, thread (D) M12, suitable for types FA 0.9, FA 1.4, FA 1.5, FA 2.5 and FA 3. Read more...

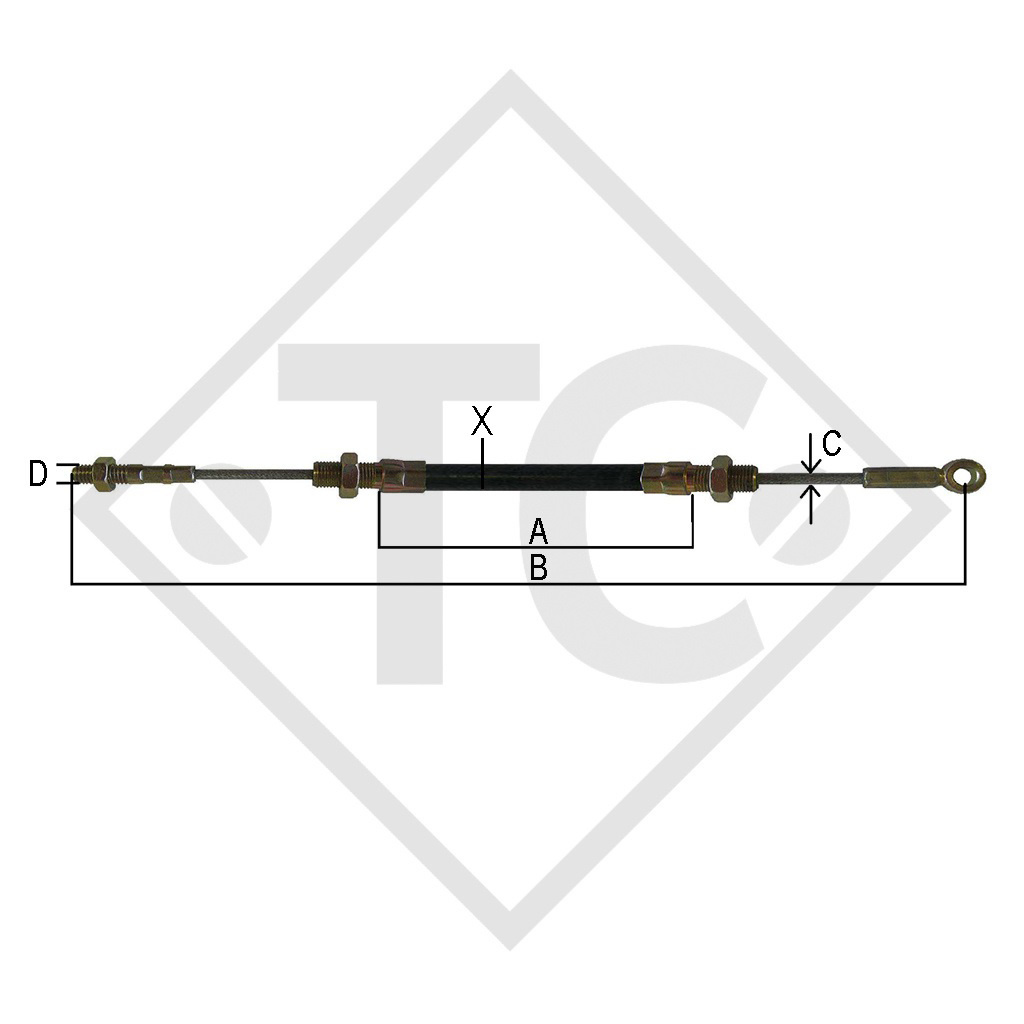

| X = Part no. |
381594 |
| A = sheath length |
870mm |
| B = cable length | 1110mm |
| C = cable thickness | 6mm |
| D = thread | M12 |
| suitable for types | FA 0.9, FA 1.4, FA 1.5, FA 2.5, FA 3 |
SCOPE OF DELIVERY
Bowden cable for overrun device
