Home / CHASSIS PARTS / CHASSIS PARTS AL-KO / AXLES / BRAKED AXLES & ACCESSORIES / BRAKED AXLES / LOWERING AXLES / LOWERING AXLES DOWN TO 140MM, TANDEM / LOWERING AXLES DOWN TO 140MM, AXLE TYPE BRA 1600-12, TANDEM TO 2000KG / Bowden cable 241109 hook in with thread M10, vers. steel
sheath length (H) 1000mm, cable length (S) 1260mm, can be used with wheel brake 3062 and 3081 from year of manufacture 01/1989, bell internal diam. 25.5mm, outside 30mm. Read more...

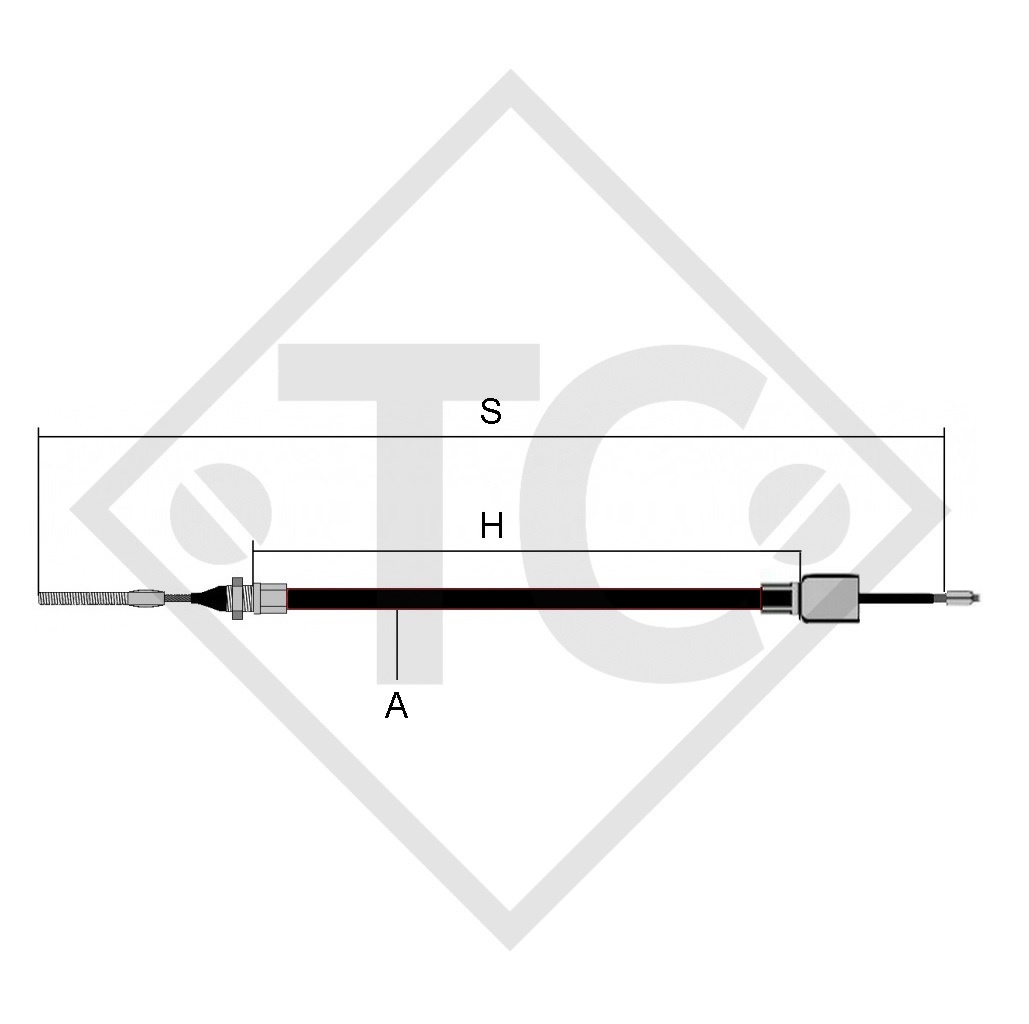

| A = Part no. |
241109 |
| H = sheath length |
1000mm |
| S = cable length | 1260mm |
| can be used with wheel brake | 3062 and 3081 from year of manufacture 01/1989 |
| Bell internal diam. | 25.5mm |
| Bell outside |
30mm |
SCOPE OF DELIVERY
1 Bowden cable
Per axle, please order: 2 units
