Home / CHASSIS PARTS / CHASSIS PARTS WAP / AXLES / BRAKED AXLES & ACCESSORIES / TANDEM AXLE UNIT 1700 TO 3500KG, AXLE TYPE WAGT-B / WADT-L / TANDEM AXLE UNIT 2700KG WAGT-B, AXLE TYPE WAGT 27 / Bowden cable 241106 hook in with thread M10, vers. steel
sheath length (H) 500mm, cable length (S) 760mm, can be used with wheel brake 3062 and 3081 from year of manufacture 01/1989, bell internal diam. 25.5mm, outside 30mm. Read more...

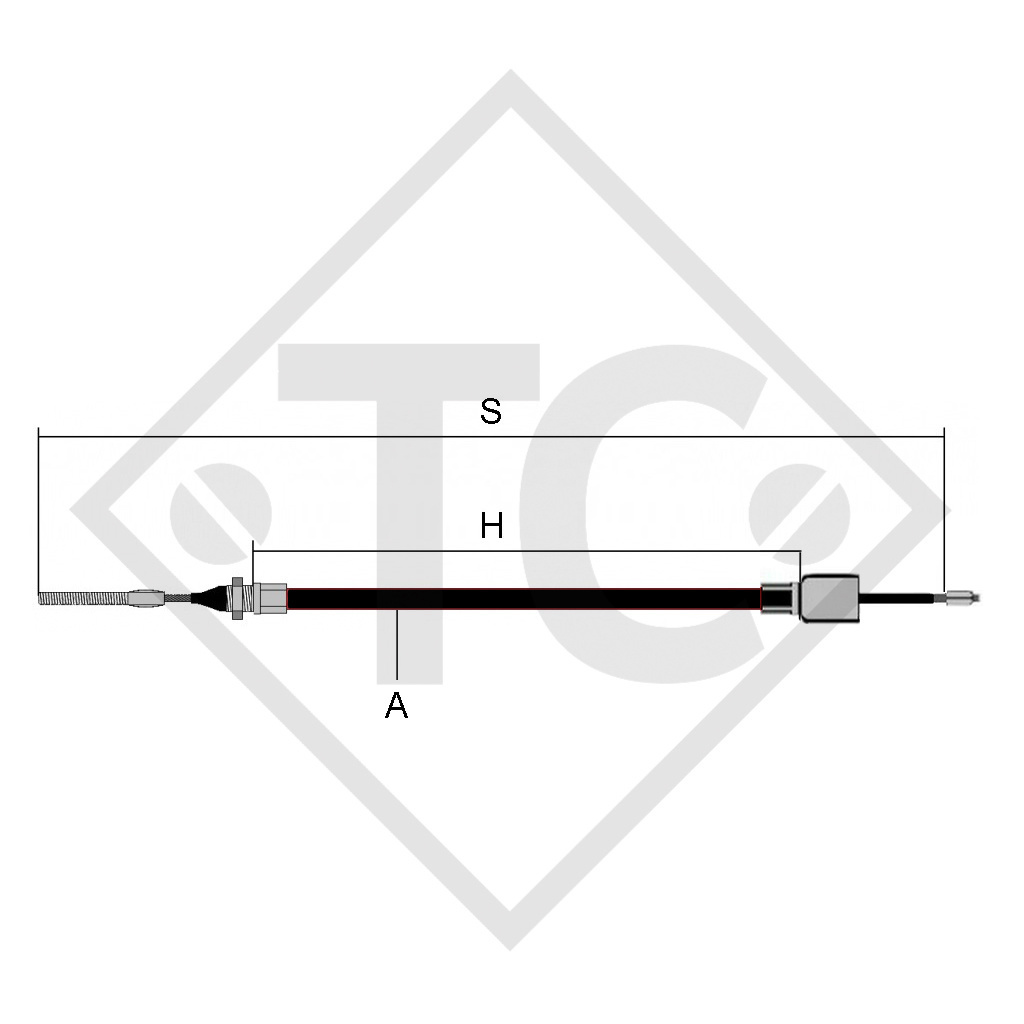

| A = Part no. |
241106 |
| H = sheath length |
500mm |
| S = cable length | 760mm |
| can be used with wheel brake | 3062 and 3081 from year of manufacture 01/1989 |
| Bell internal diam. | 25.5mm |
| Bell outside |
30mm |
SCOPE OF DELIVERY
1 Bowden cable
Per axle, please order: 2 units
