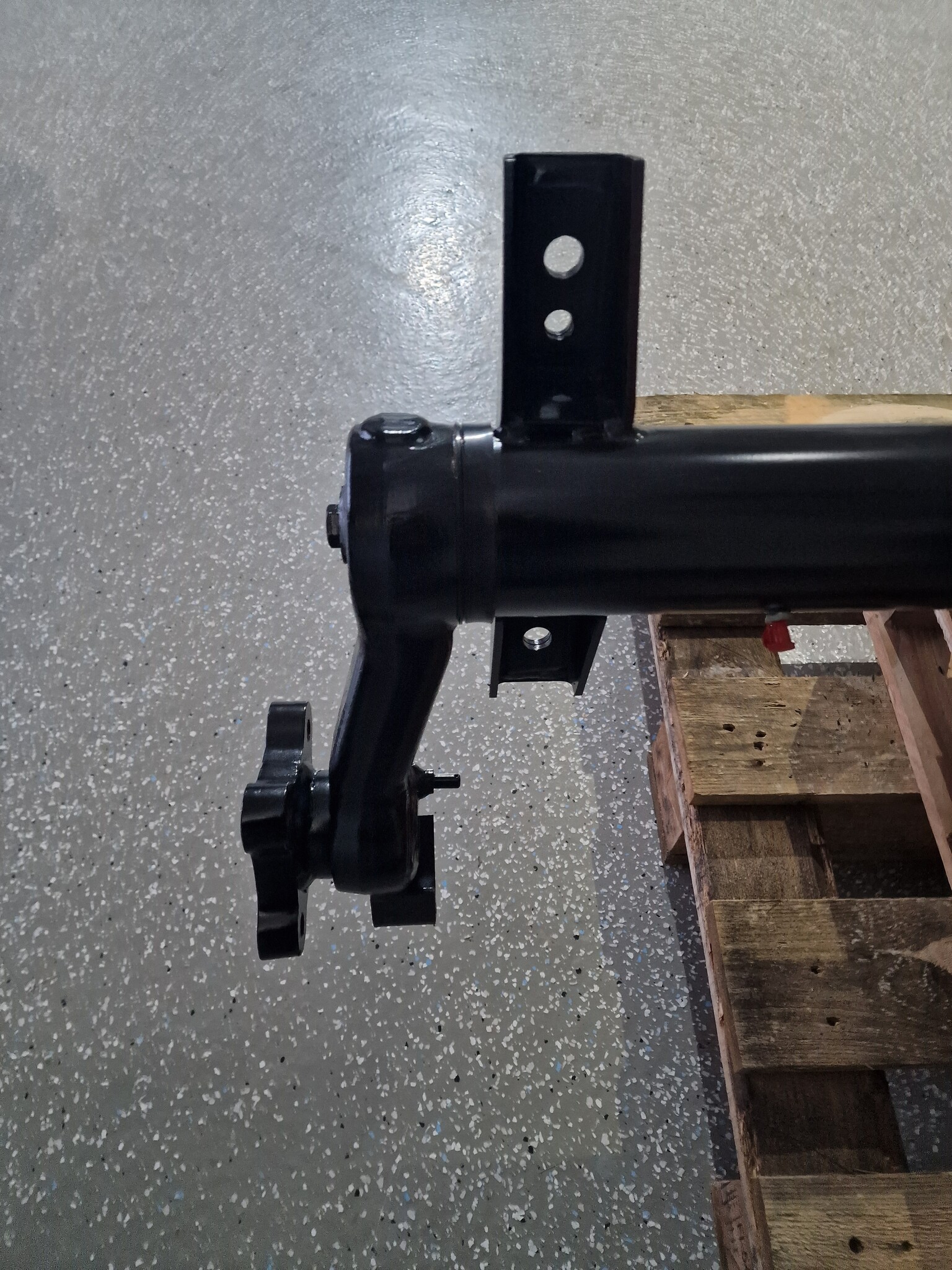

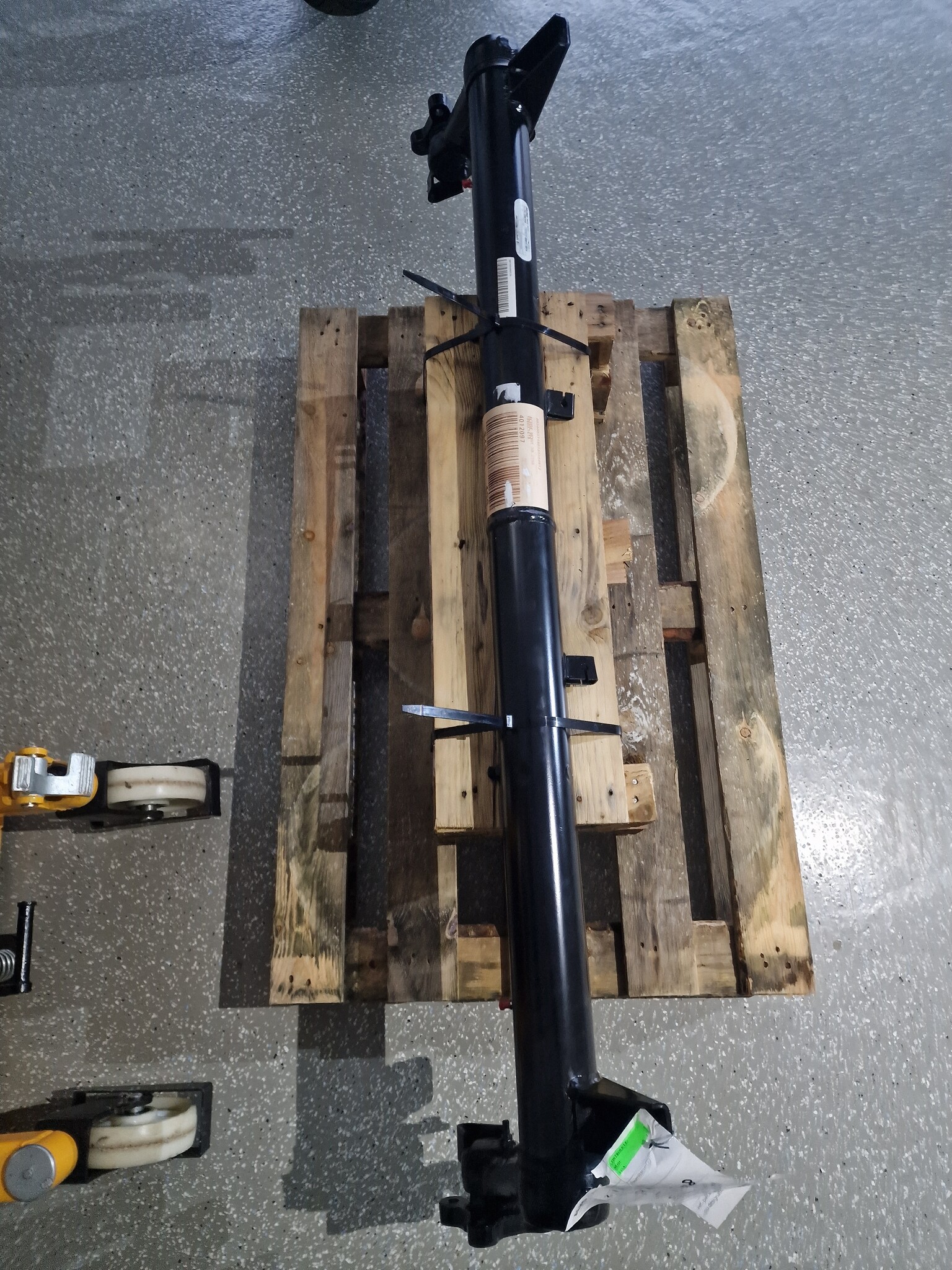

Home / Axle without brakes 2100kg CITROËN JUMPER axle type DB 2100, 45.37.000.437

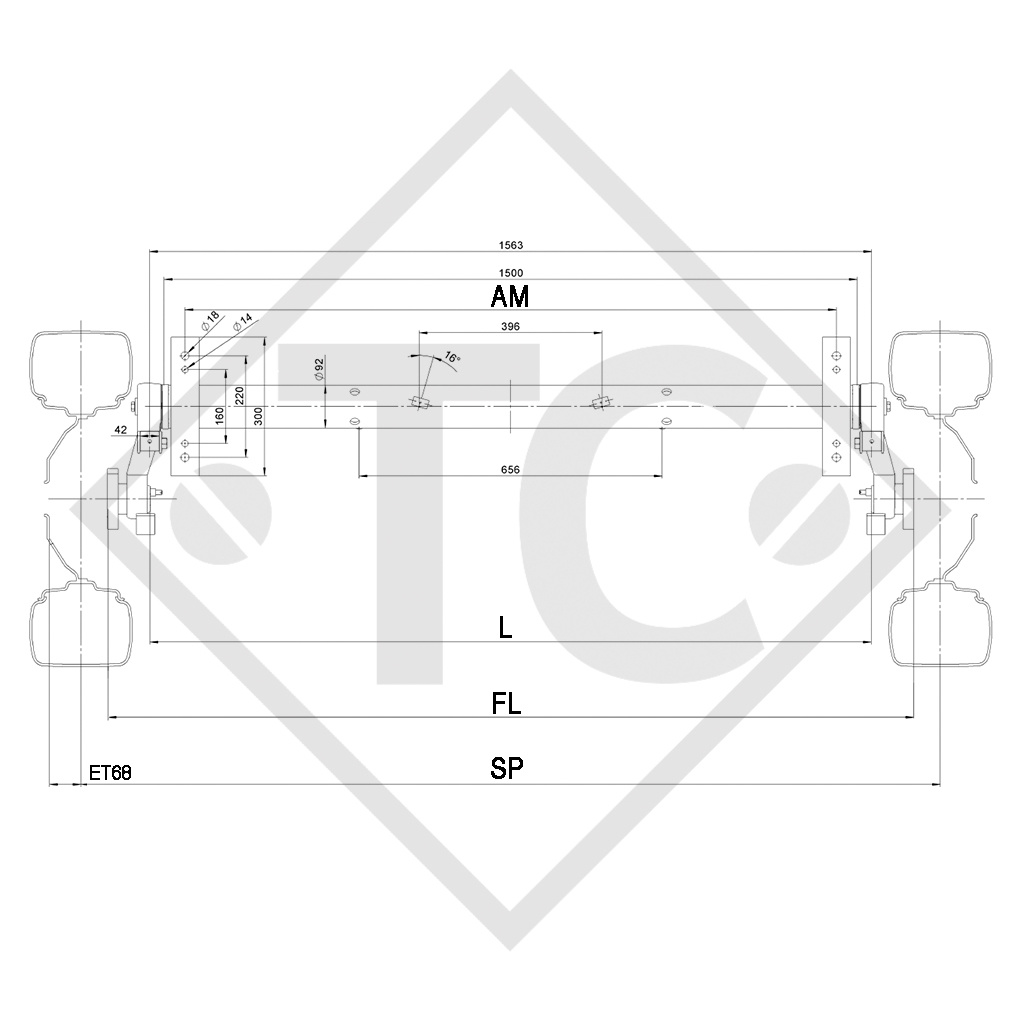

BC: dimension AM 1440mm, OHF: dimension FL 1854mm, connection 82x82mm, WITHOUT wheel brake, swing arm position 10°, axle profile 92mm. Read more...
Part no. 45.37.000.437
| Dimension FL |
1854mm |
| Dimension SP |
1970mm |
| Dimension AM |
1440mm |

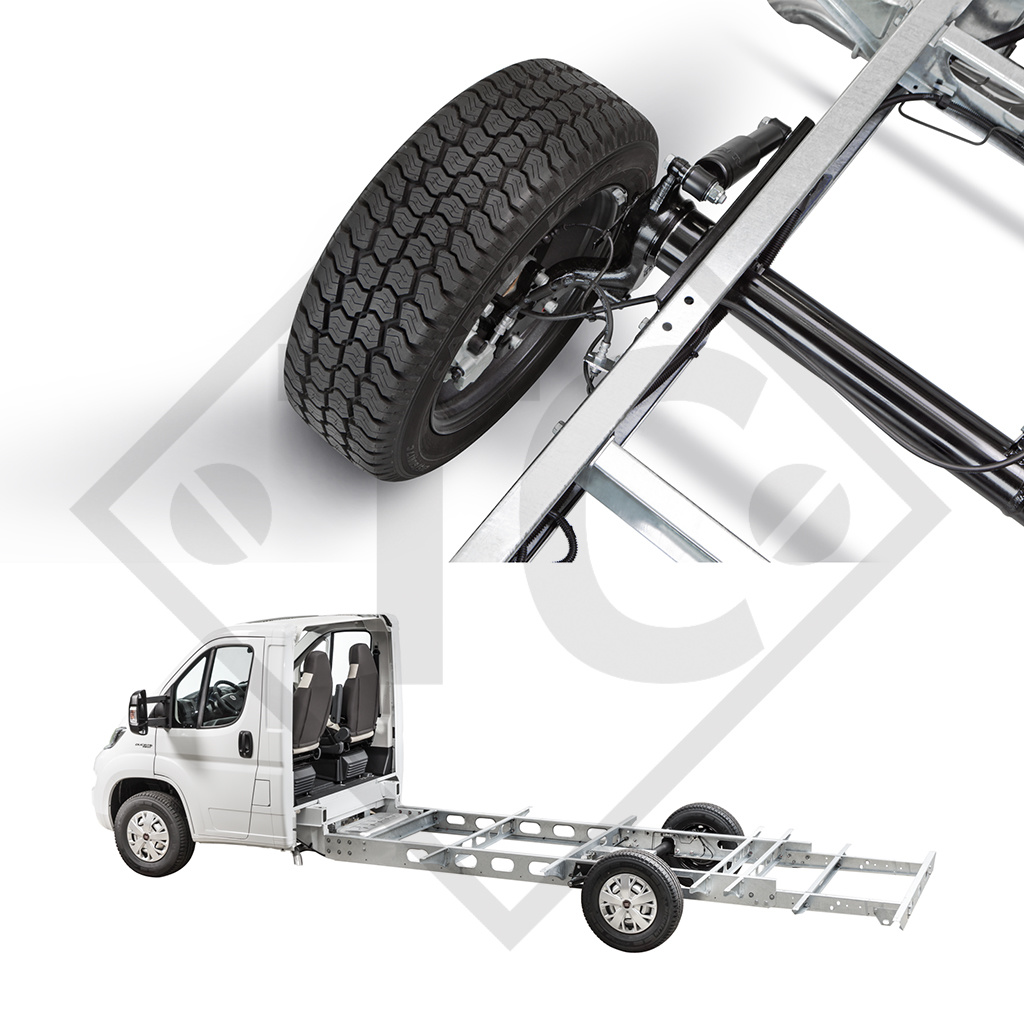

| Model | CITROËN JUMPER |
| Axle type | DB2100 |
| Axle load single axle | 2100kg |
| Axle load: Tandem axel | - - - |
| Wheel brake | WITHOUT wheel brake |
| Suspension | Square rubber suspension |
| RONDO arm | 200mm |
| Connection | 82x82mm |
SCOPE OF DELIVERY
Axle WITHOUT wheel brake
DETAILS
