Home / Axle without brakes 2100kg Peugeot Boxer axle type DB 2100, 37.92.000.007

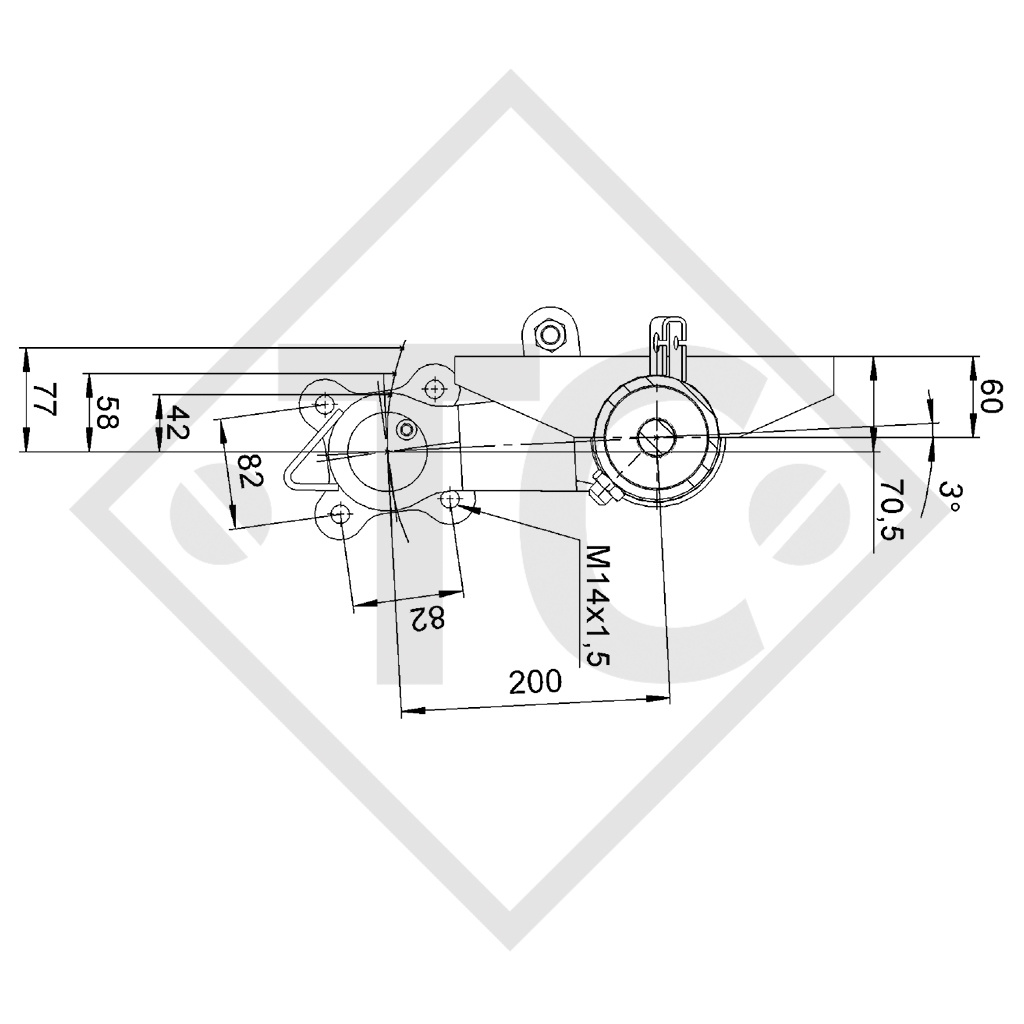

BC: dimension AM 1220mm, OHF: dimension FL 1654mm, connection 82x82mm, WITHOUT wheel brake, swing arm position 15°, axle profile 92mm. Read more...
Part no. 37.92.000.007
| Dimension FL |
1654mm |
| Dimension SP |
1770mm |
| Dimension AM |
1220mm |
| Dimension L |
1471mm |
| Offset (ET) | 68mm |
| Model | Peugeot Boxer |
| Axle type | DB2100 |
| Axle load single axle | 2100kg |
| Axle load: Tandem axel | - - - |
| Wheel brake | WITHOUT wheel brake |
| Suspension | Square rubber suspension |
| RONDO arm | 200mm |
| Connection | 82x82mm |
SCOPE OF DELIVERY
Axle WITHOUT wheel brake
DETAILS
