Home / CHASSIS PARTS / CHASSIS PARTS BPW / AXLES / BRAKED AXLE 1500KG SWING, AXLE TYPE CB 1505 / Axle without brakes 2100kg FIAT DUCATO axle type DB 2100, 45.37.000.019
BC: dimension AM 1220mm, OHF: dimension FL 1614mm, connection 82x82mm, WITHOUT wheel brake, swing arm position 5°, axle profile 92mm. Read more...
Part no. OLD 45.37.000.019 / 37.92.000.001
Part no. NEW 4012091

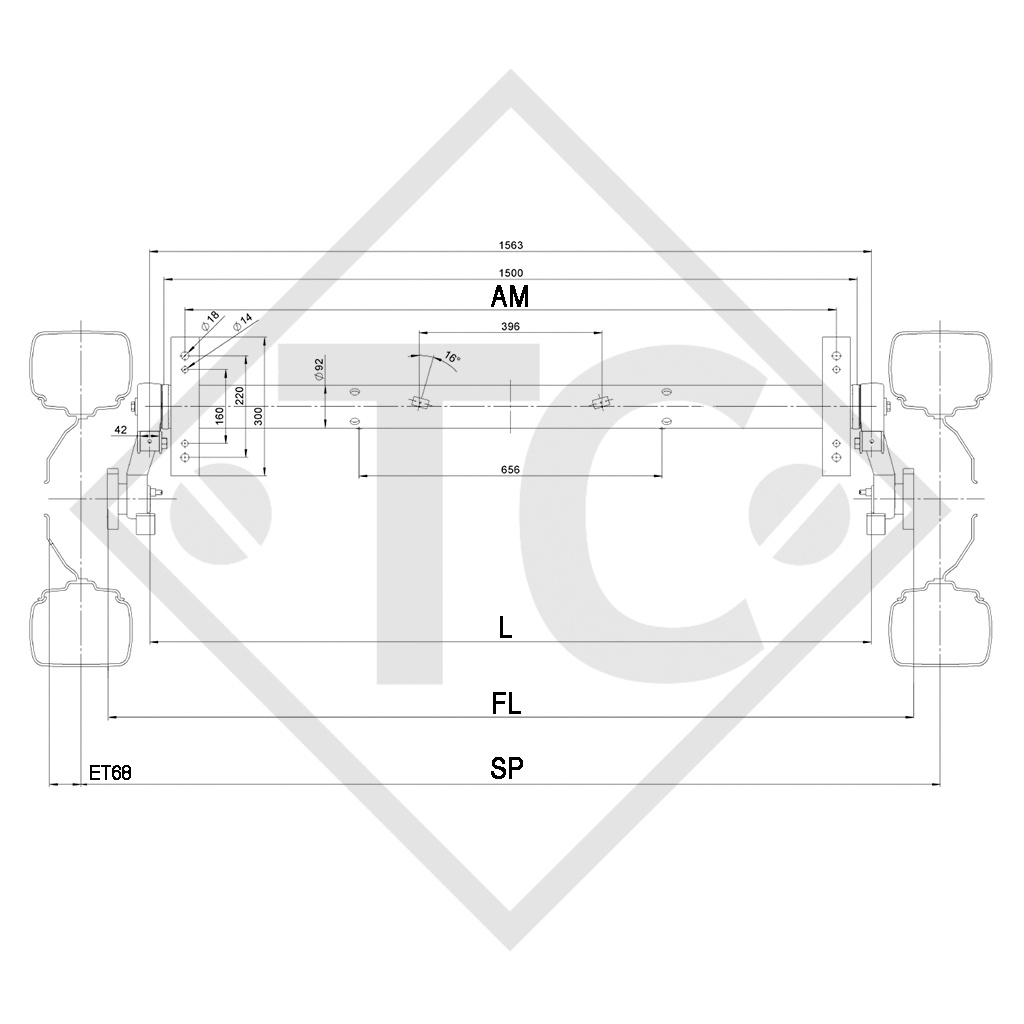

| Dimension FL |
1614mm |
| Dimension SP |
1730mm |
| Dimension AM |
1220mm |
| Dimension L |
1431mm |
| Offset (ET) | 68mm |
| Model | Fiat Ducato |
| Axle type | DB2100 |
| Axle load single axle | 2100kg |
| Axle load: Tandem axel | - - - |
| Wheel brake | WITHOUT wheel brake |
| Suspension | Square rubber suspension |

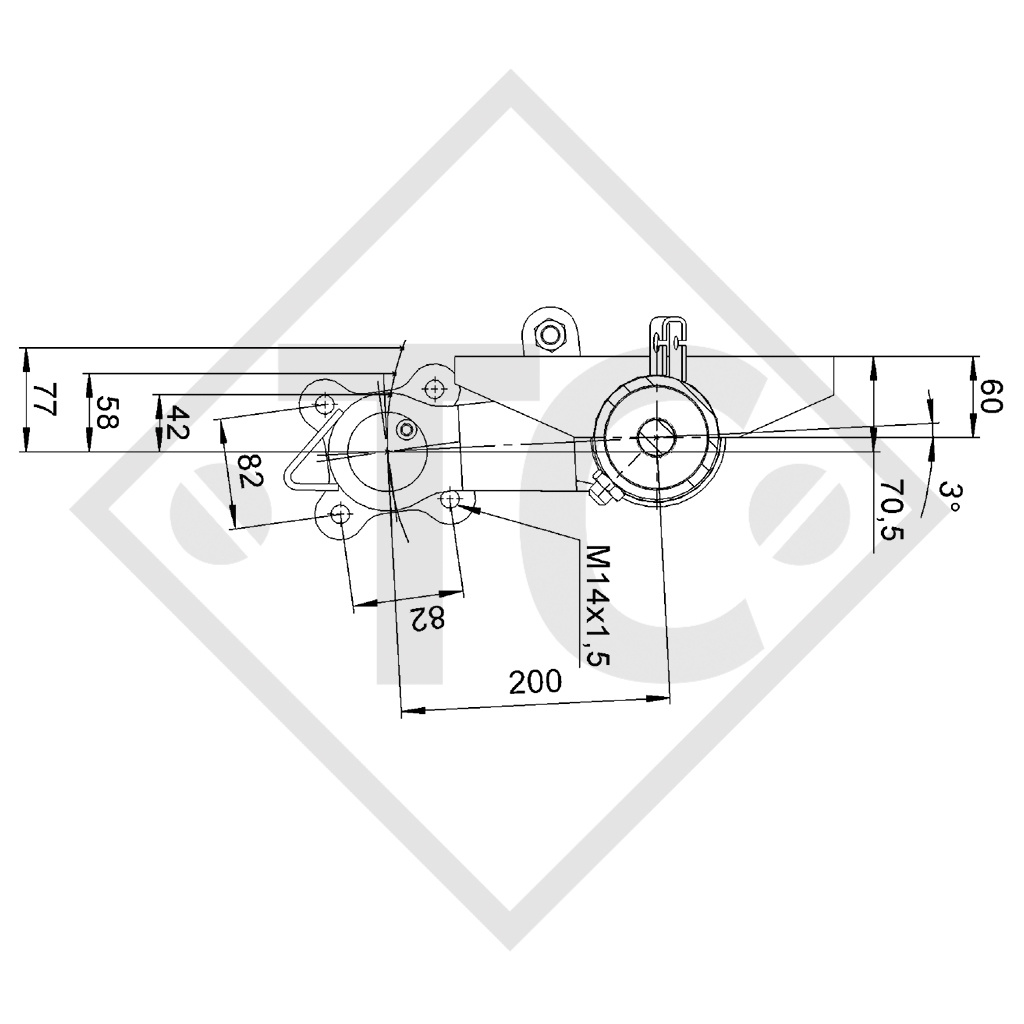

| RONDO arm | 200mm |
| Connection | 82x82mm |
SCOPE OF DELIVERY
Axle WITHOUT wheel brake
DETAILS
