Home / Axle without brakes 2100kg FIAT DUCATO axle type DB 2100, 45.37.000.450

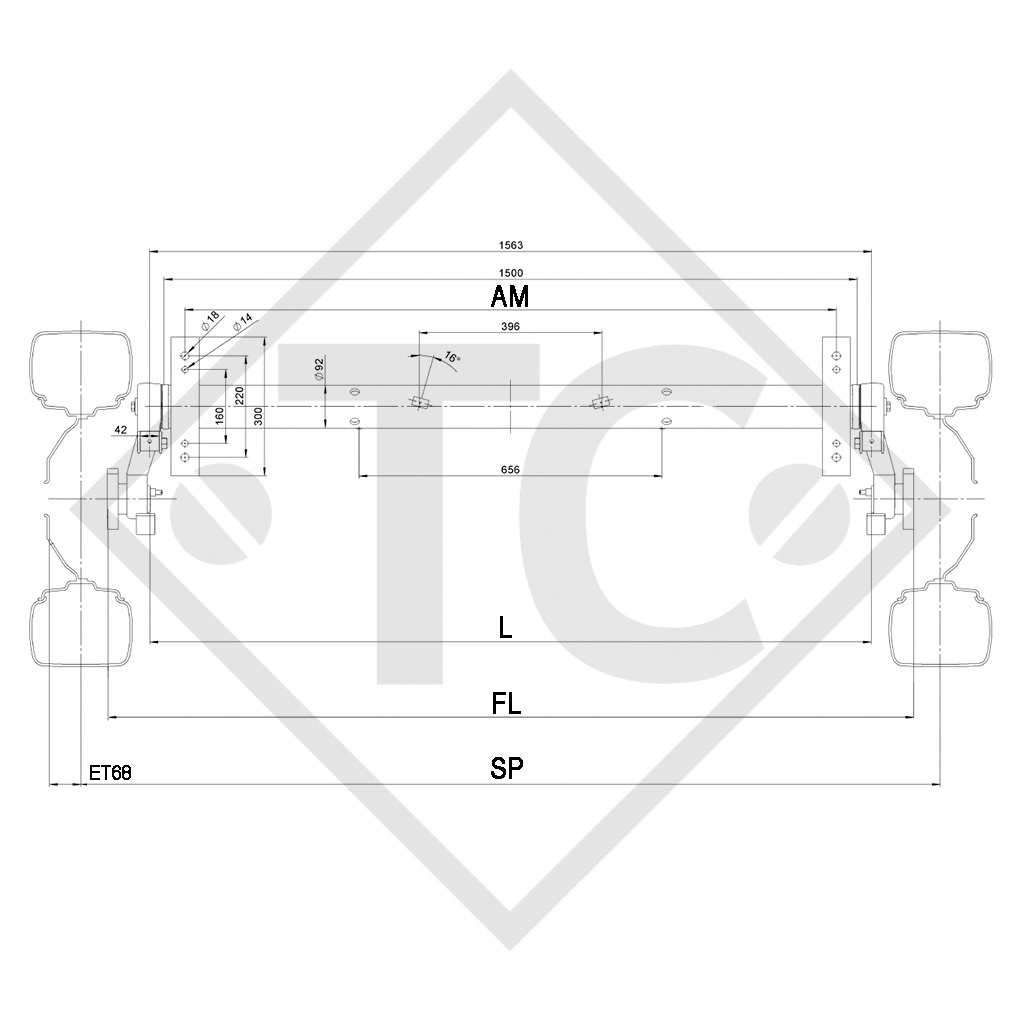

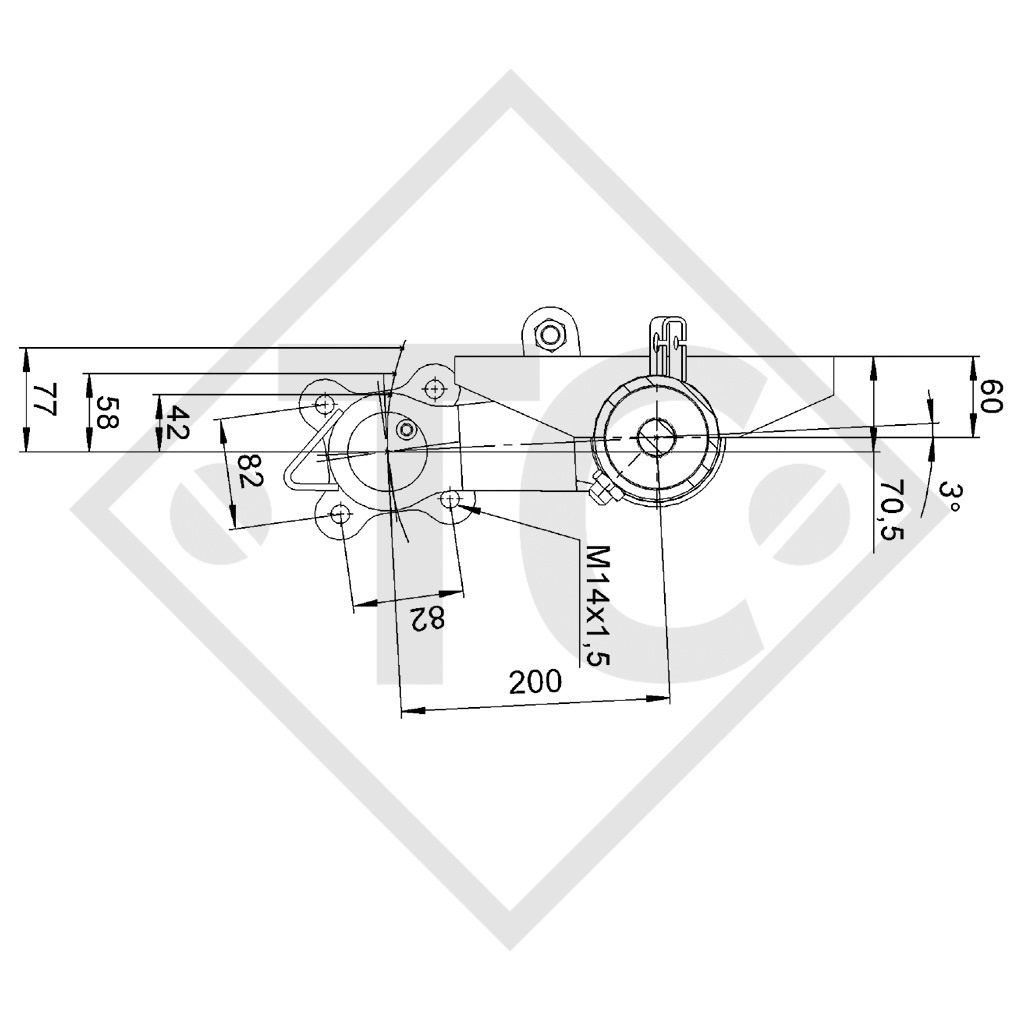

BC: dimension AM 1520mm, OHF: dimension FL 1844mm, connection 82x82mm, WITHOUT wheel brake, swing arm position 5°, axle profile 92mm. Read more...
Part no. 45.37.000.450
| Dimension FL |
1844mm |
| Dimension SP |
1960mm |
| Dimension AM |
1520mm |
| Dimension L1/L2 |
756/1661mm |
| Offset (ET) | 68mm |
| Model | Fiat Ducato |
| Axle type | DB2100 |
| Axle load single axle | 2100kg |
| Axle load: Tandem axel | - - - |
| Wheel brake | WITHOUT wheel brake |
| Suspension | Square rubber suspension |
| RONDO arm | 200mm |
| Connection | 82x82mm |
SCOPE OF DELIVERY
Axle WITHOUT wheel brake
