Home / 2x Braked axle 1500kg EURO1 axle type DELTA SI-N 14-1, tandem 2800kg
BC: dimension A 1695mm, OHF: dimension C 2270mm, wheel connection 100x4, wheel brake type 2051 vers. Ab, offset (ET) 30mm, swing arm position 16°, axle profile 97mm, tandem 2800kg. Read more...
Part no. 1701192 (1900603 + 1900604)

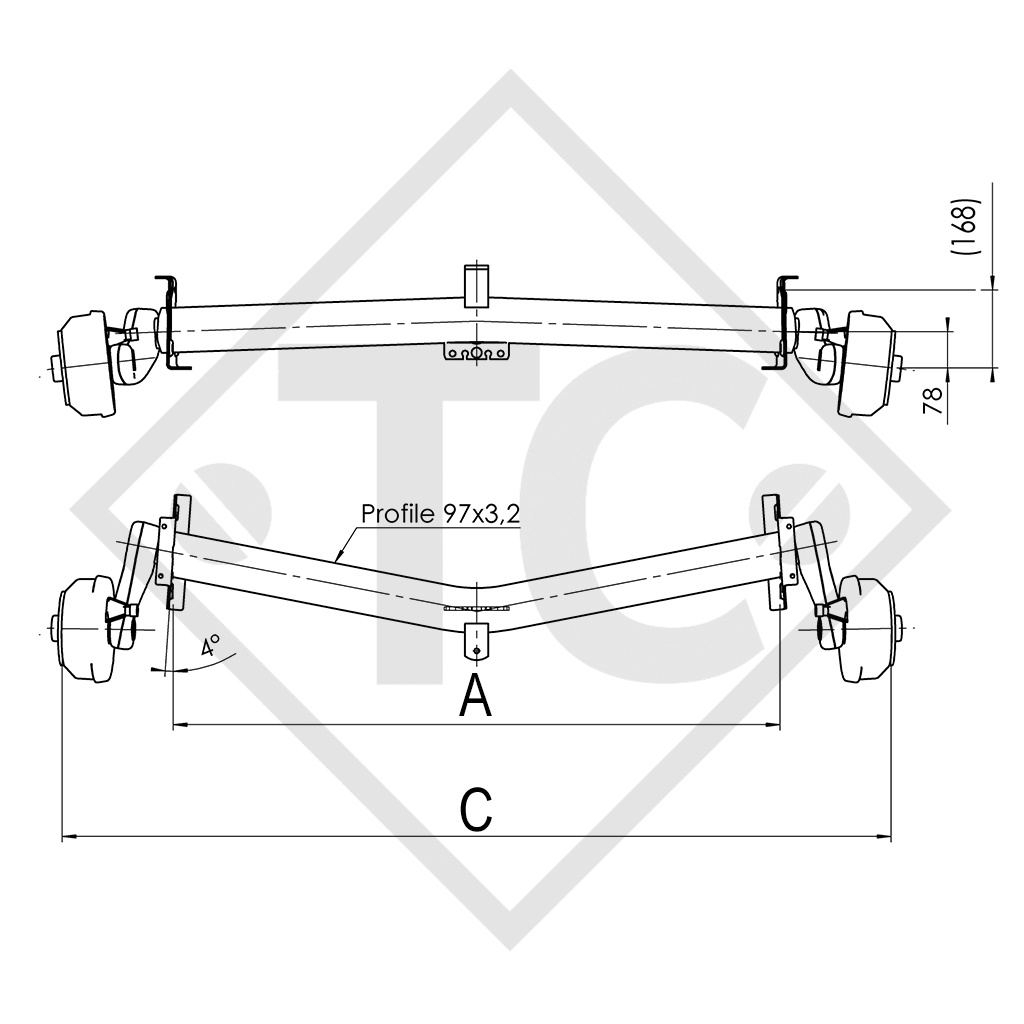

BC: dimension A 1695mm
OHF: dimension C 2270mm
Wheel connection 100x4
Offset (ET) 30mm
Swing arm position 16°
Axle profile 97mm
Original operating instructions
TECHNOLOGY
Model: EURO1
Axle type: DELTA SI-N 14-1
(Axle load: Single axle 1500kg)
Axle load: Tandem axle 2800kg
Wheel brake: 2051 vers. Ab + AAA
Suspension: Hexagonal rubber suspension
Wheel bearing: Compact bearing
Rim centre hole: Min. 63mm
SCOPE OF DELIVERY
Axle with brake (AAA) and wheel bolts spherical M12x1,5
Axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
