Accueil / Timon droit carré freiné type 2,8 VB/1-C - R35 version B, PTAC de 2500 à 3500kg
longueur totale A 3095mm, longueur du timon C 2260mm, profil timon 120x120x5mm, charge à la rotule autorisée 150kg, avec tête d'attelage AK 351, pour frein de roue 2361. Lire plus...
Part no. 20036358

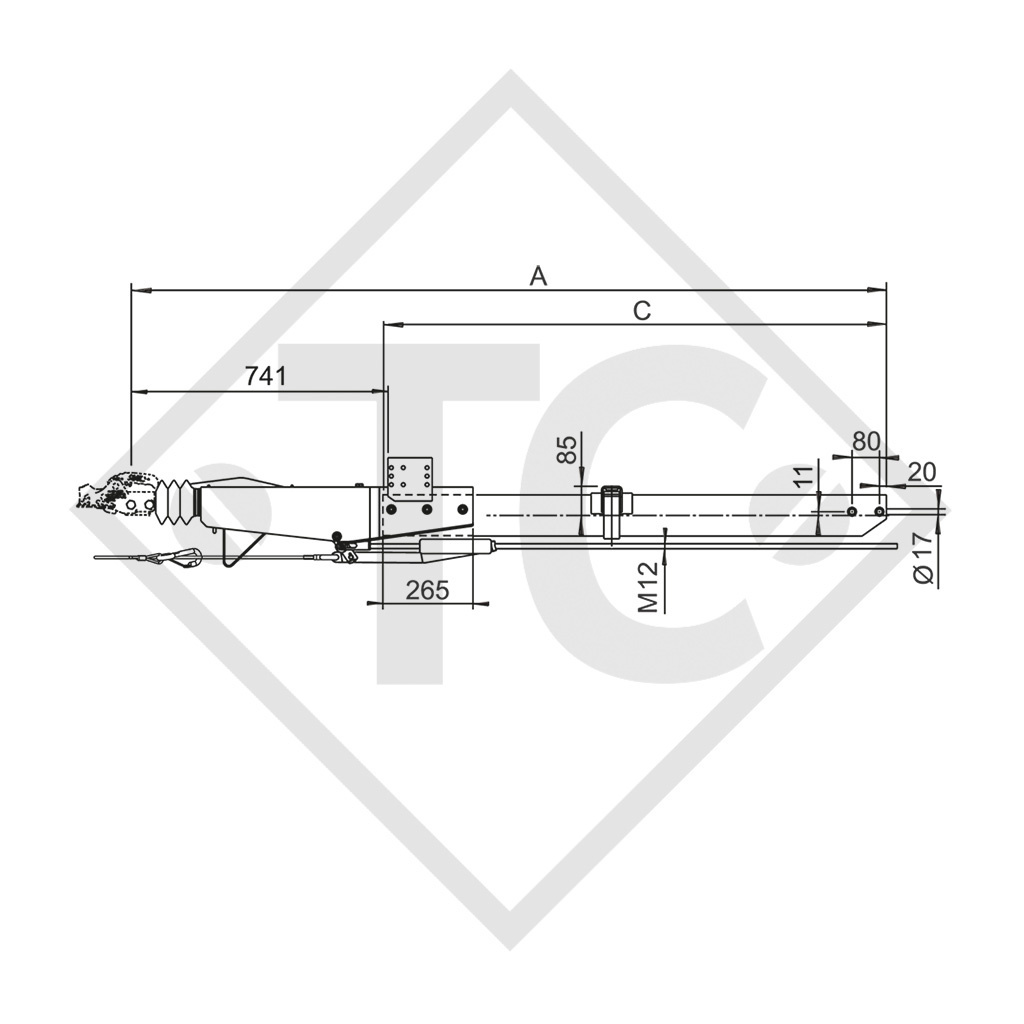

Total length A: 3095mm
Drawbar length C: 2260mm
Drawbar section: 120x120x5mm

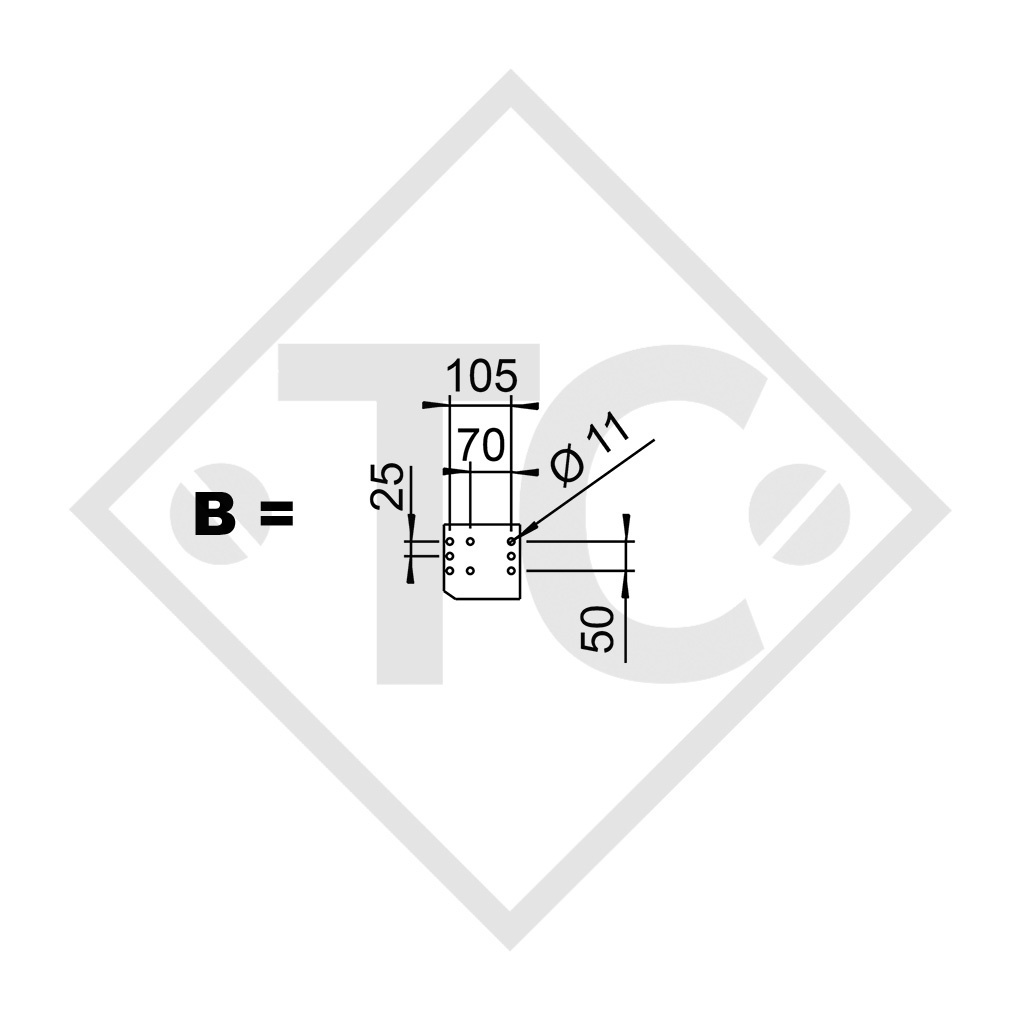

Jockey wheel flange = see illustration B
INSTALLATION MANUAL
SPARE PART LIST 811666
TECHNOLOGY
Type 2,8 VB/1-C - R35 vers. B
with coupling head AK 351 for wheel brake 2361 (90/32)
GA 2500 to 3500 kg
Perm. nose load 150 kg
Changeover relay lever: No
ECE test report no.:
Overrun device: 361-0045-97
ECE type approval no.:
Drawbar installation: E1 55R-01 0378
Drawbar: E1 55R-01 0762

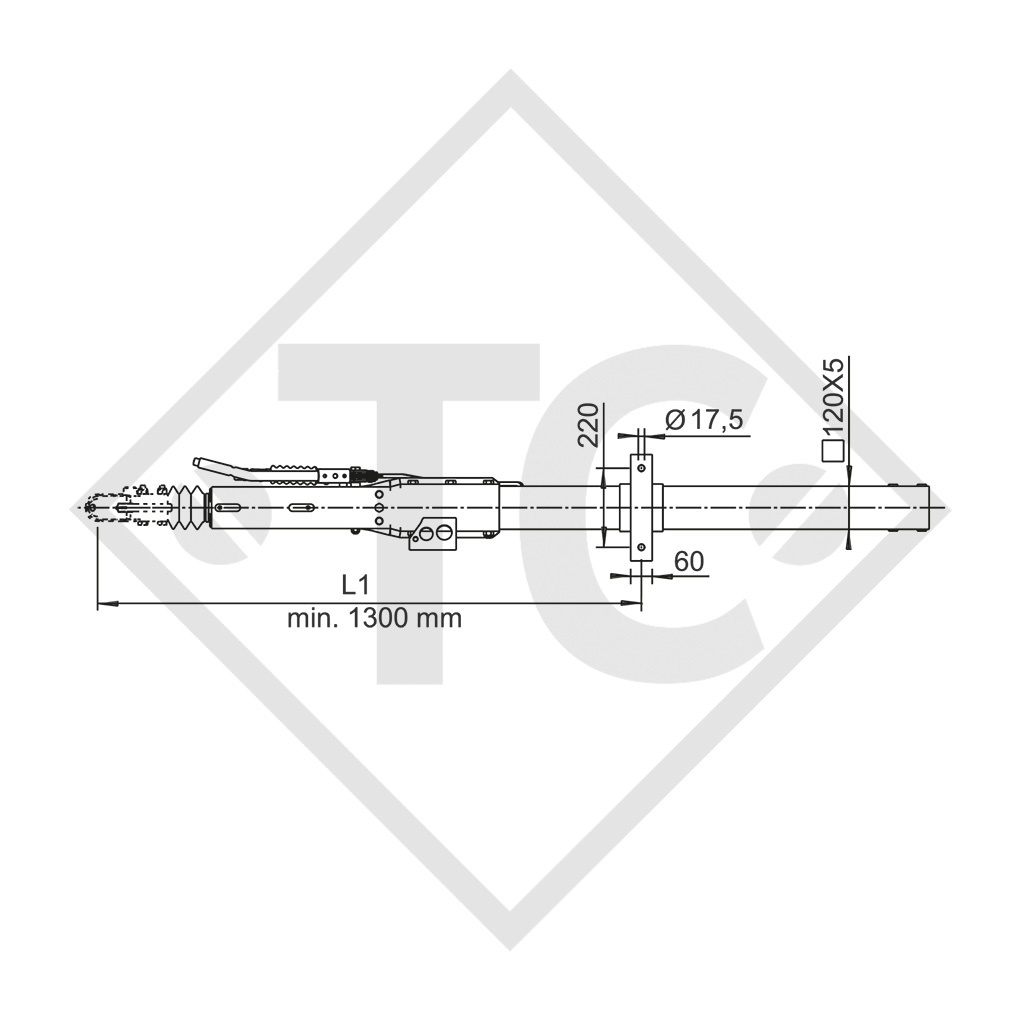

Max. free drawbar lenght at GA 3500 kg (L1): 1820 mm
SURFACE TREATMENT
Hot-dip galvanised
